Corsair 3200D Mid-Tower Chassis Review

TweakTown Rating: 91%

Our Verdict

The Corsair 3200D is a budget-friendly case with strong cooling and modern features, but the cramped rear panel design makes cable management difficult.

Pros

• Great MSRP
• Three included 120mm fans that are pre-installed
• Good cooling performance

Cons

• The rear side panel design indents towards the motherboard tray
• POGO pins pop out

Should you buy it?

AvoidConsiderShortlistBuy

Buy at Amazon for $79.99 USD

Buy at Amazon for £79.99

Buy at PC Case Gear for $149

Introduction, Specifications, and Pricing

Corsair sent us their new 3200D, which is its latest budget case. We tested the RS ARGB model at $89.99 (now $79.99), while a basic RS model retails for $79.99 (now $69.99). The ARGB features PWM fans and the RS uses DC fans. Both support up to nine 120mm or four 140mm fans. Let's take a closer look at this affordable choice for new builders.

Best Deals: Corsair 3200D RS ARGB Mid-Tower Chassis

	Today	7 days ago	30 days ago
	$79.99 USD	$79.99 USD	$79.99 USD	Buy
	$79.99 USD	$79.99 USD	$79.99 USD	Buy
	£79.99	£79.99	£84.30	Buy
	$79.99 USD	$79.99 USD	$79.99 USD	Buy
	$149	$149	$149	Buy
	Check Price	Check Price	Check Price	Buy
	Check Price	Check Price	Check Price	Buy
	Check Price	Check Price	Check Price	Buy
* Prices last scanned 5/16/2026 at 2:07 am CDT - prices may be inaccurate. As an Amazon Associate, we earn from qualifying purchases. We earn affiliate commission from any Newegg or PCCG sales.

Packaging

22

As is standard with Corsair products, the 3200D is packaged in a brown cardboard box featuring the Corsair sails logo and the product name.

22

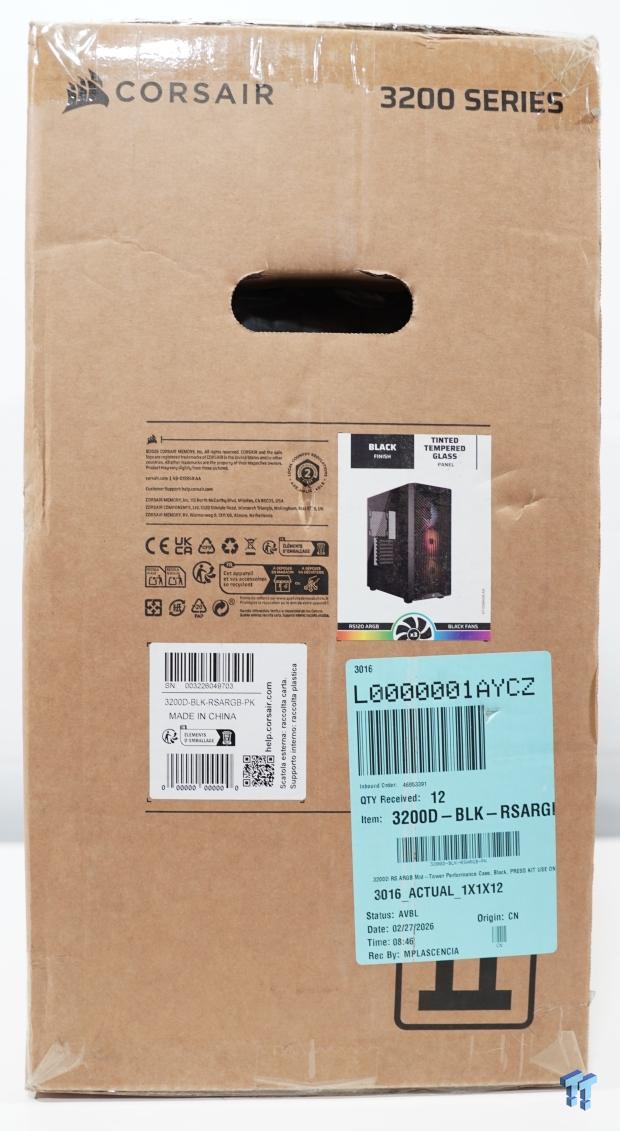

Turning the box gives us more details, such as color, model, and included fans, helping set expectations before unboxing.

22

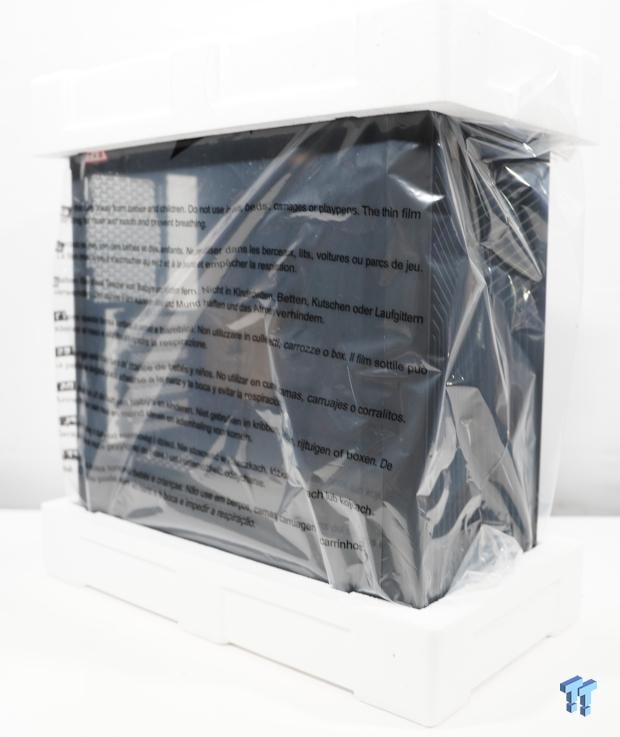

Next, pulling the 3200D from its cardboard shipping box, we find two pieces of closed-cell foam and a clear plastic bag with writing on it-standard Corsair packaging elements.

Outside the Corsair 3200D

22

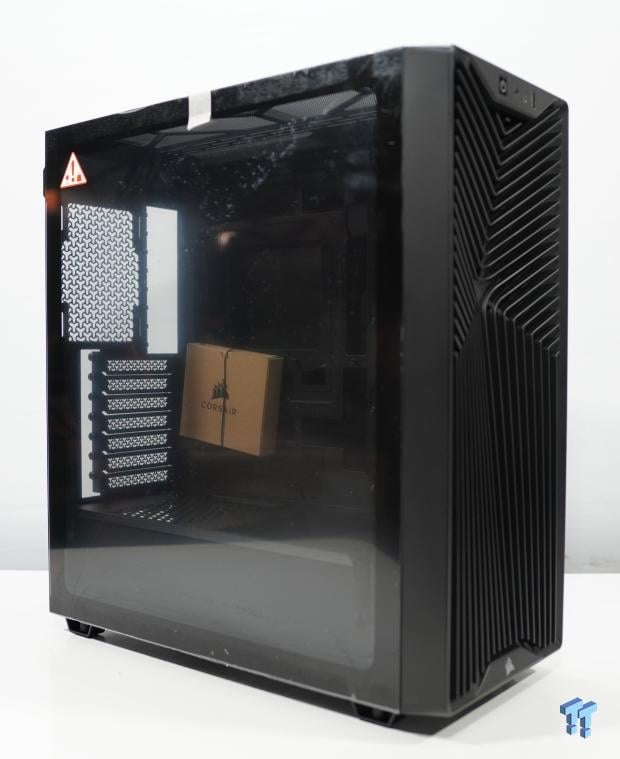

After removing all the shipping materials, we can see the 3200D's design elements: angular lines for the front air intake and a distinctive "Y" ventilation pattern in the rear fan grille and PCIe I/O covers. The total external dimensions are 495mm (H) x 219mm (W) x 458mm (L).

22

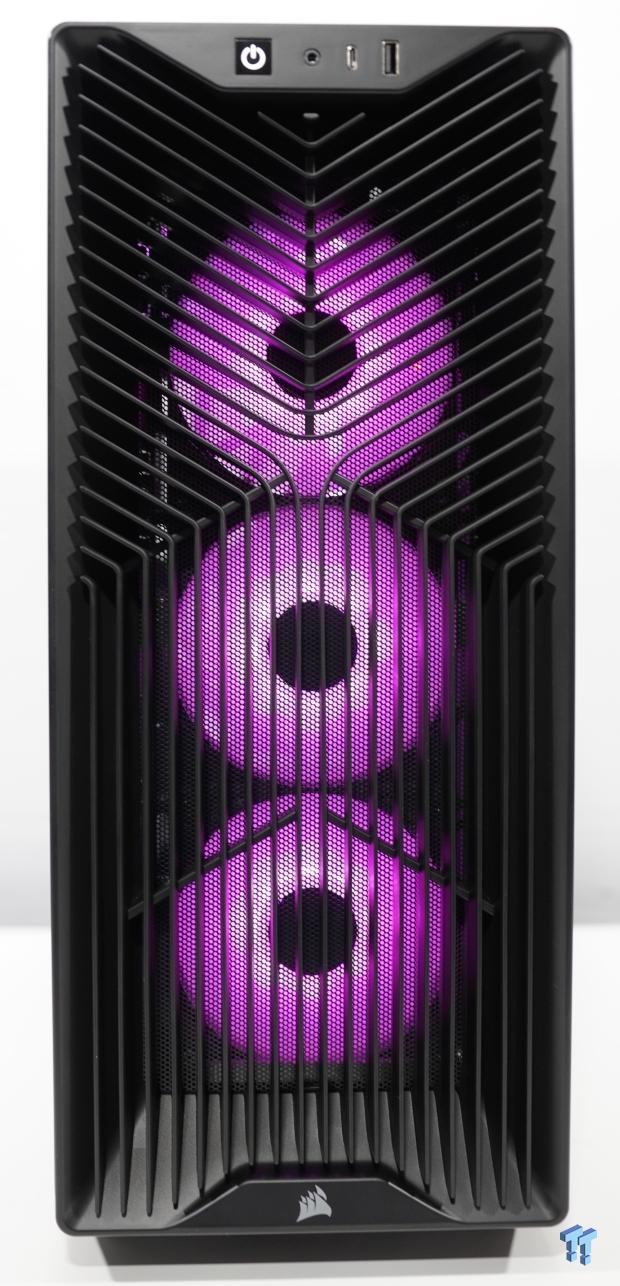

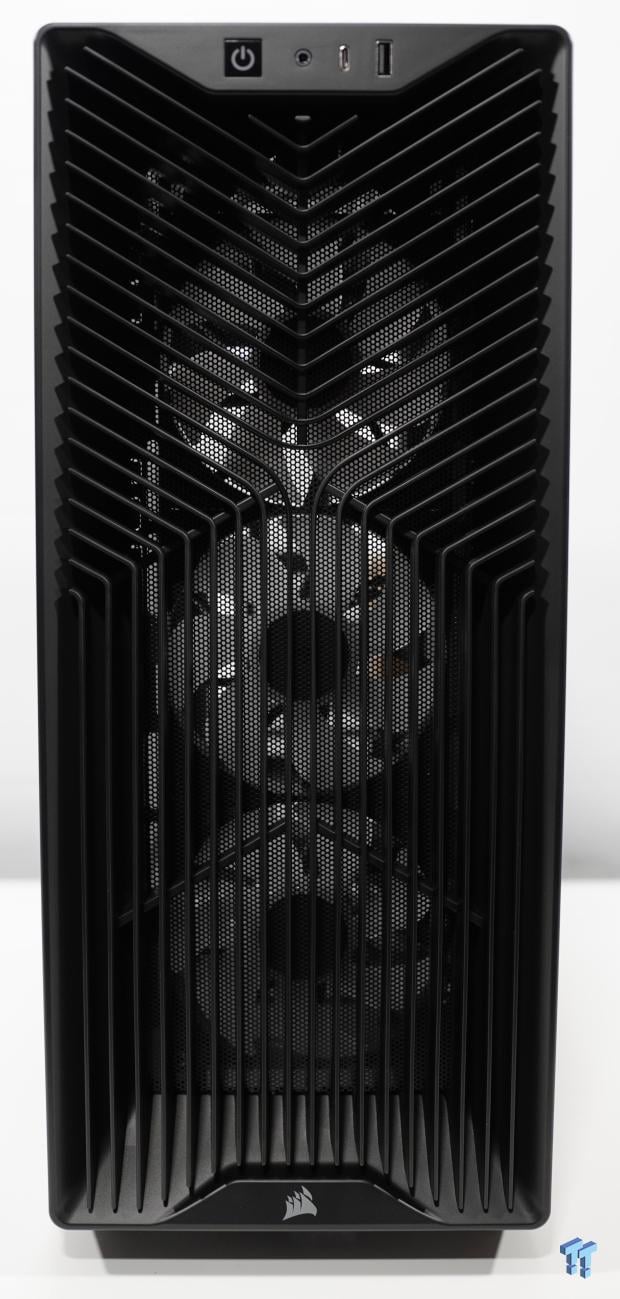

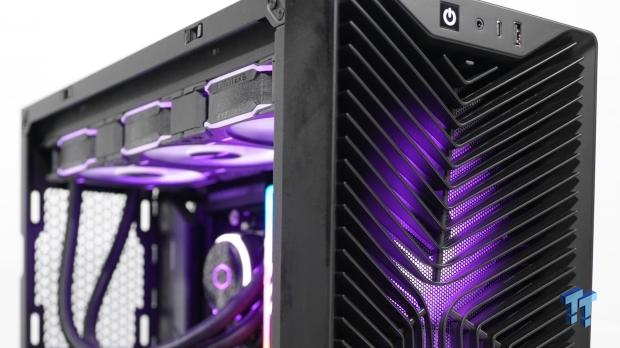

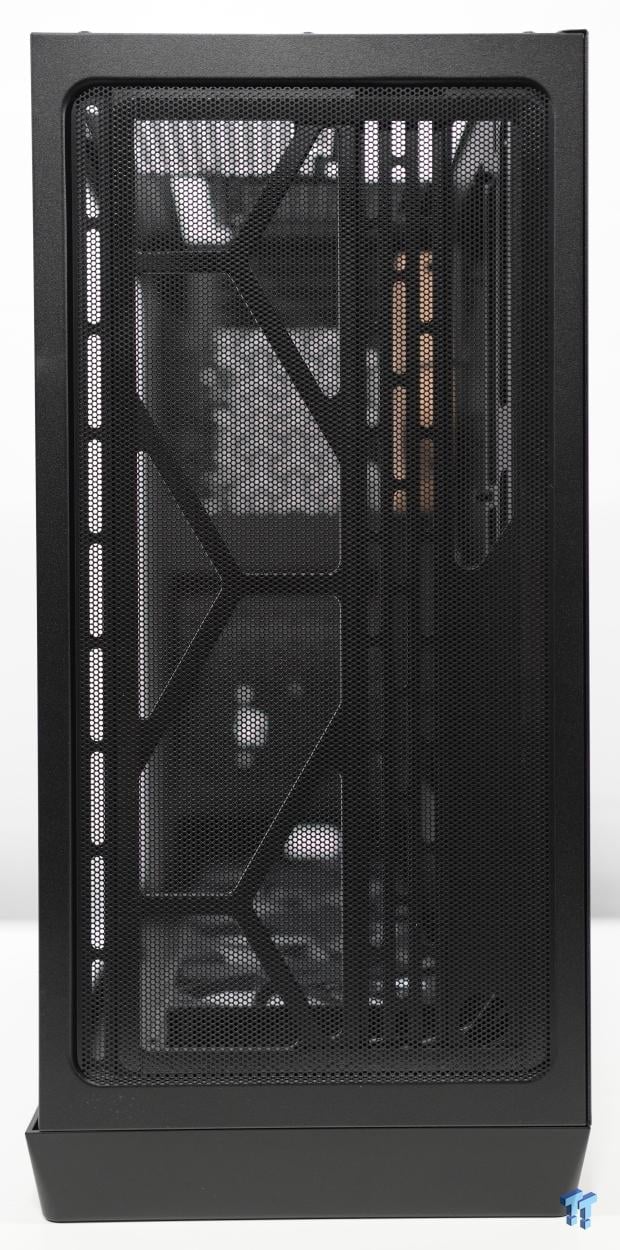

A closer inspection of the front panel reveals a mostly unobstructed airflow path, enhanced by a fine mesh dust filter in front of the three included 120mm fans. The top panel features a square power button, a combination 3.5mm audio jack, a USB 3.2 Gen 2x2 20Gbps Type-C port, and a USB 2.0 Type-A port.

22

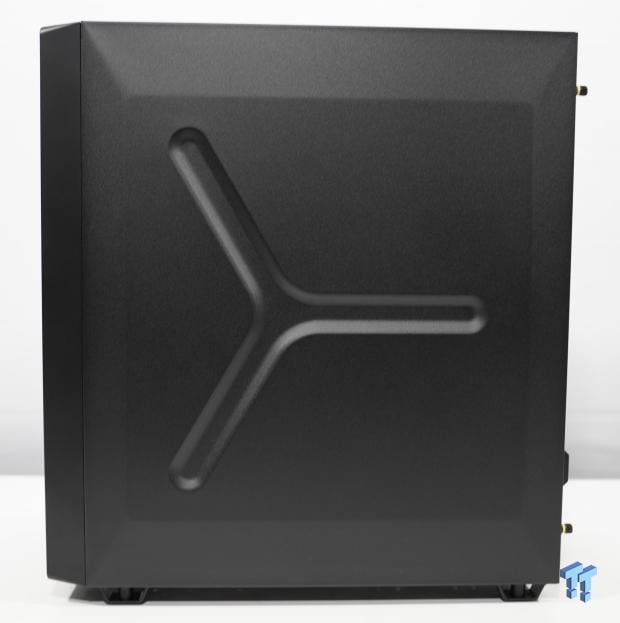

Moving to the back side panel, we notice an interesting design stamped into the steel that seems to interfere with cable management-a point we'll revisit during the build. The rear side panel is held in place with two captive thumbscrews.

22

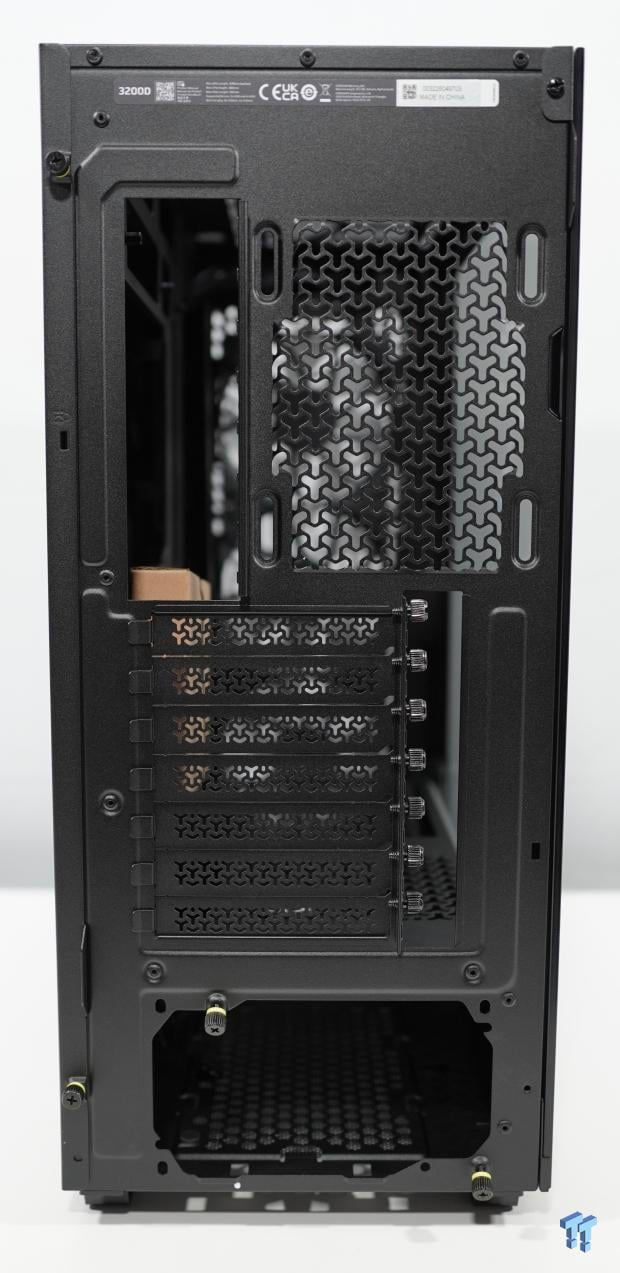

Swinging around to the rear of the 3200D, we have support for a single 120mm fan, 7 PCIe (Peripheral Component Interconnect Express, used for expansion cards) slots, and an ATX PSU (Power Supply Unit). Keep in mind the PSU mount is not removable for easier installation; however, it has 2 captive thumbscrews already in place.

22

The top of the case features a magnetic dust filter and mounting options for up to a 360mm radiator, or for three 120mm fans or two 140mm fans.

22

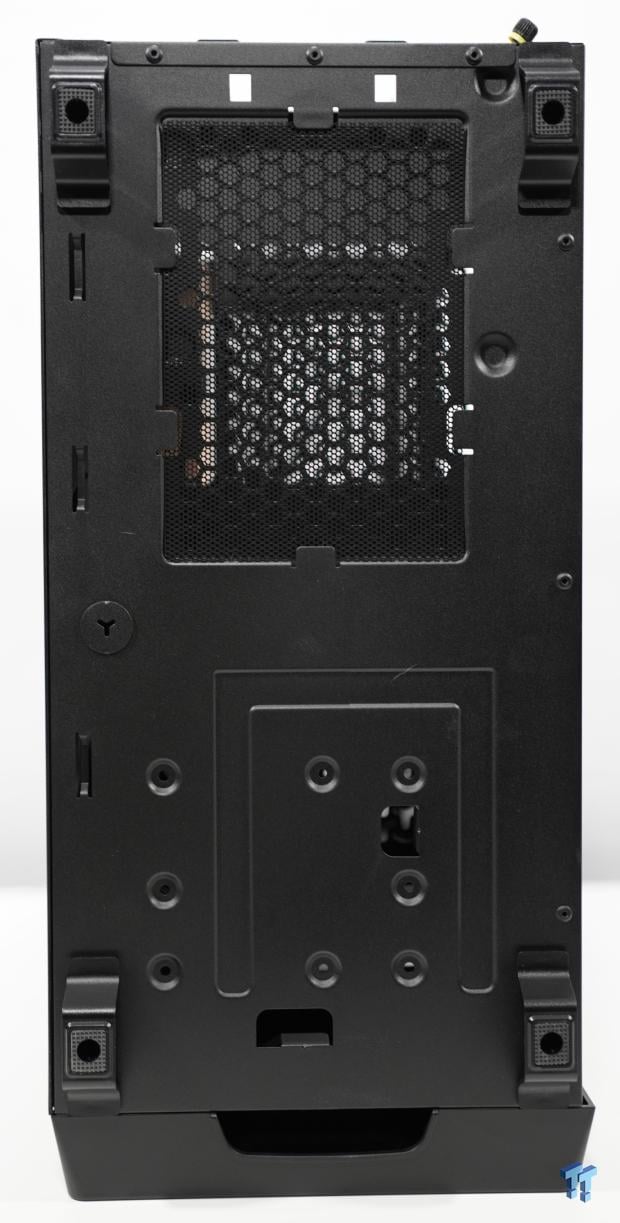

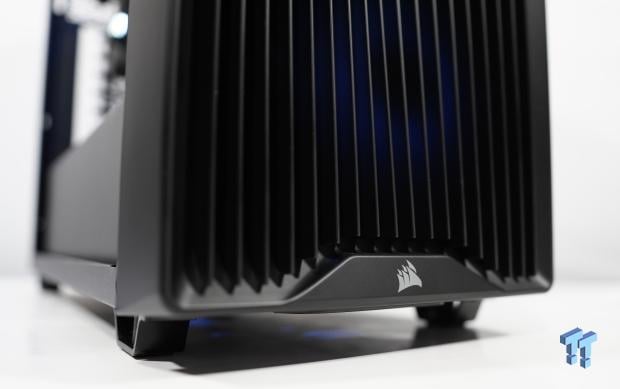

Examining the underbelly of the 3200D, we find four raised feet with small rubber dampeners. The PSU also has a dust filter, though it is not magnetic. The front panel is removable by pulling from the bottom via the slot, making maintenance straightforward.

Inside the Corsair 3200D

22

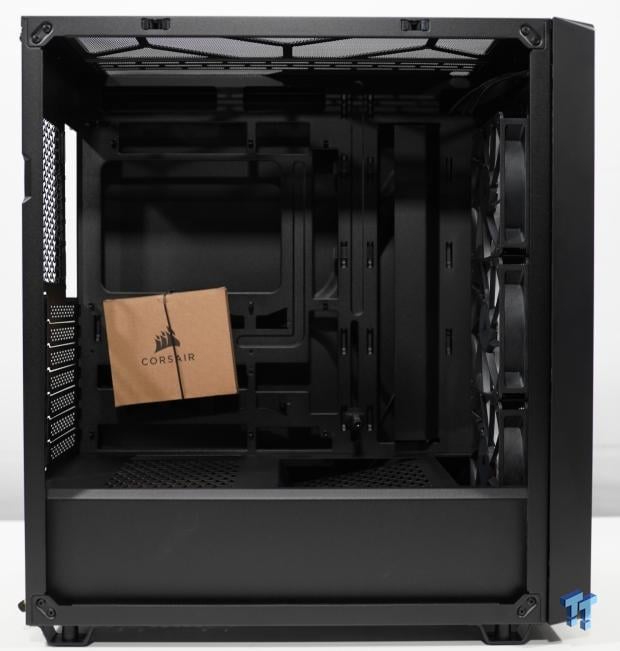

Removing the tempered glass side panel, which is slightly tinted, shows the traditional ATX (Advanced Technology eXtended) layout inside. Support for up to 370mm in GPU (Graphics Processing Unit) length, 165mm in CPU (Central Processing Unit) cooler height, and up to 180mm in PSU (Power Supply Unit) length. Fan support is something Corsair is boasting quite a bit about, with up to 9 total 120mm fans supported at once, 2 of which are on the PSU shroud, with one angled to provide direct airflow to the GPU.

22

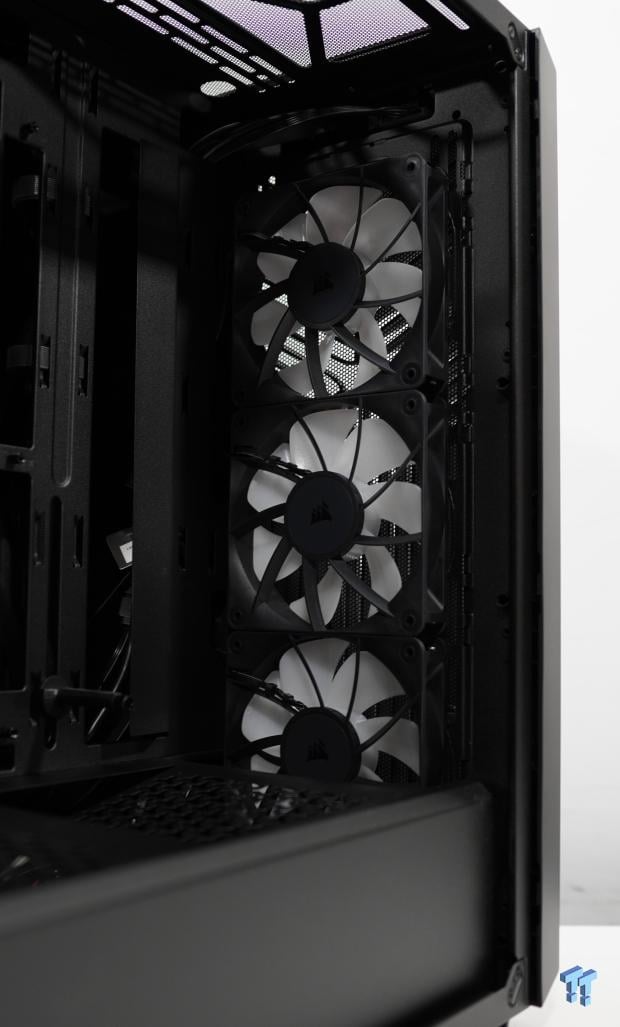

Additionally, three RS PWM 120mm ARGB fans are pre-installed in the front, providing abundant fresh, clean air and setting the stage for the case's cooling performance.

22

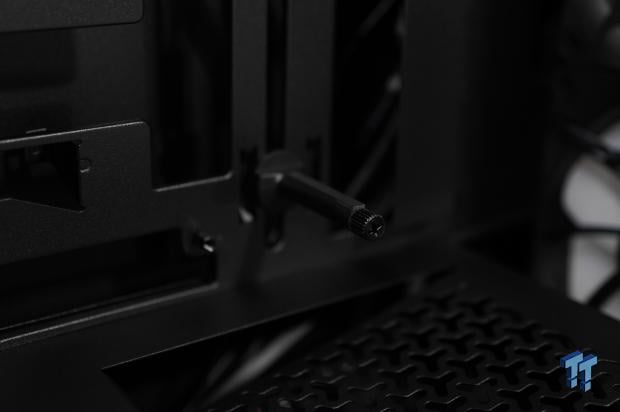

Corsair has included a GPU anti-sag support peg, with the recommendation that the graphics card's fan not be obstructed.

22

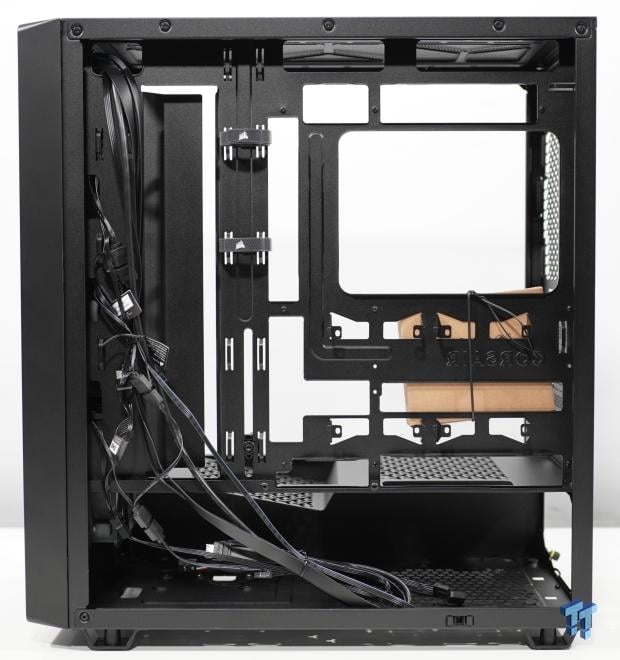

Stripping the tempered glass side panel and the rear side panel exposes the 3200D's cable management, which includes a cable raceway running up the center with two velcro points. Support for reverse connectors or BTF (Back-to-Front, a motherboard layout with connectors on the opposite side) motherboards is a given, provided we have more openings than metal. HDD (Hard Disk Drive) support is limited to two 2.5" SSDs (Solid State Drives) or HDDS on the backside of the motherboard tray, while PSUs (Power Supply Units) have a length limit of 180mm.

Installation, Testing, Finished Product, and Final Thoughts

Ryan's Test System Specifications

22

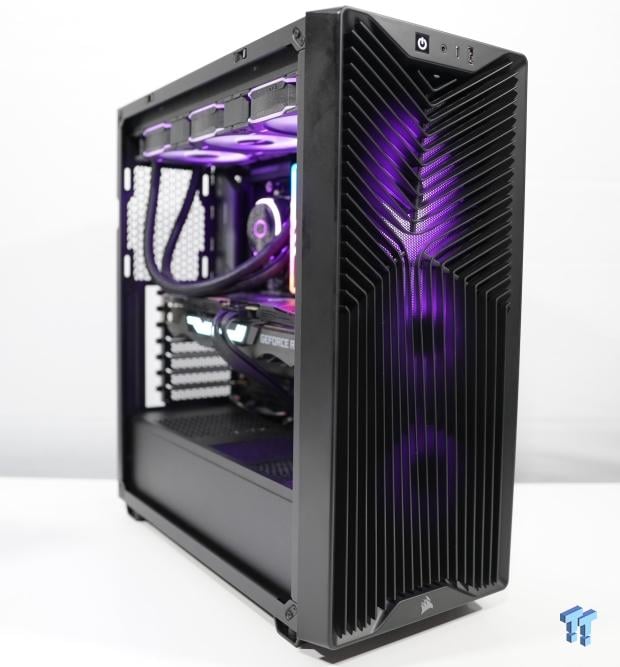

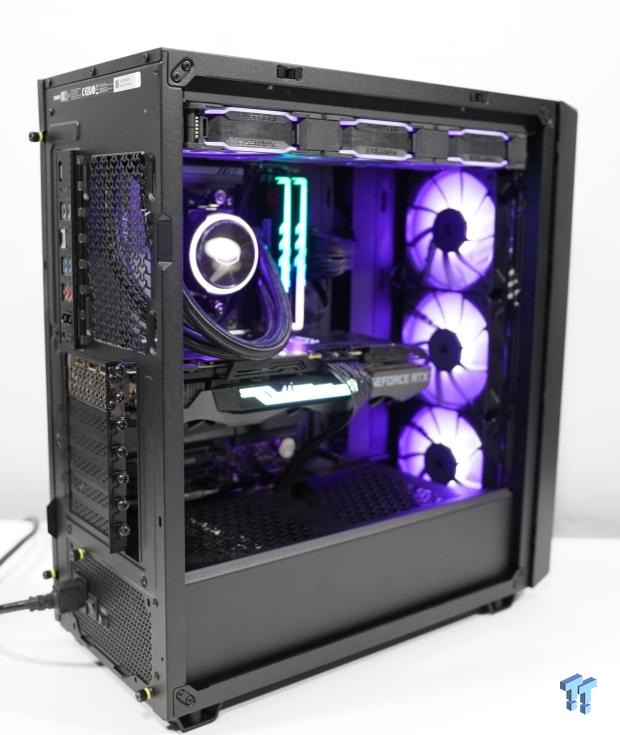

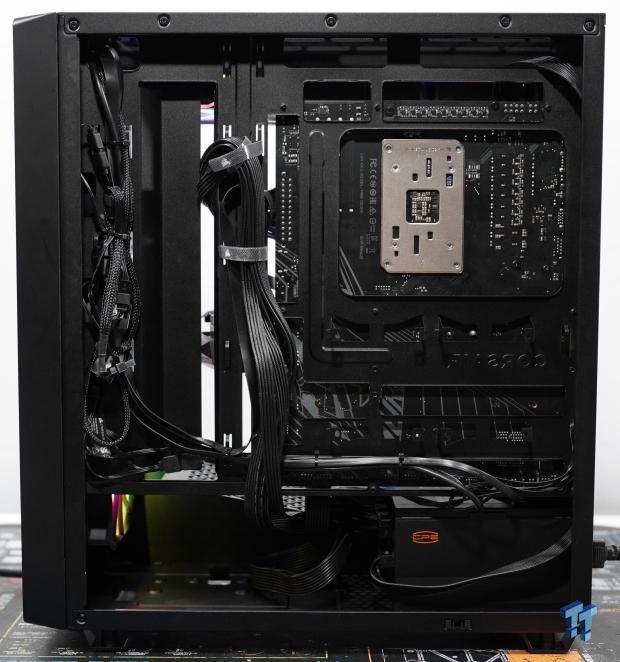

With the build complete and running smoothly, cable management runs are visible throughout, keeping everything tidy. The only real issue emerged during rear side panel reinstallation: Corsair uses three POGO pins in this case, two on the bottom tempered glass panel and one near the PSU, which tended to pop out. Returning to the side panel design, since it's stamped inward, it shrinks the space for cables, making closing the panel reminiscent of needing significant force for a secure fit.

22

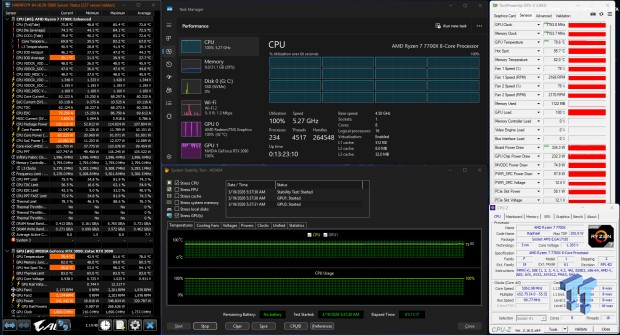

Using the Case Test Hardware, which consists of an AMD Ryzen 7 7700X 8-core, 16-threaded AM5 CPU (Central Processing Unit) on a GIGABYTE AORUS B850 motherboard, being cooled by a Cooler Master ML360 Flux 360mm AIO (All-In-One, a self-contained liquid cooler) in the roof location of the 3200D. Moving onto the CPU temperatures, averaging just 73.6C with a maximum temperature of 85.4C, which for a Ryzen 7 7700X is not horrible because all of the AM5 CPUs are meant to run the razor's edge in regards to their thermal threshold while trying to maintain the highest CPU clock possible, which was over 5GHz. Going over to the RTX 3090, the max temperature recorded was 81.6C, with an average of 78C, showing that both the CPU and GPU (Graphics Processing Unit) benefited from this airflow setup, mainly due to the three 120mm fans included with the 3200D RS ARGB.

To ensure accuracy, all tests used Aida64 Engineer's System Stability Test version 8.25.8200 for 1 hour at an ambient temperature of 17C. Additional monitoring was performed with HWiNFO64 v8.30.5800, TechPowerUp GPU-Z v2.69.0, and CPU-Z 2.17.0.x64.

The Corsair 3200D is a cost-effective ATX case designed for beginners, retailing at $79.99 for the RS version and $89.99 for the RS ARGB edition. It offers a strong set of features for the price, including excellent cooling capacity, room for up to 9 120mm fans, and pre-installed intake fans. However, it has a clear design shortcoming: an inwardly pressed section on the rear panel reduces space for cable management, making it tricky to close once everything is installed. Even with this somewhat outdated cable management challenge and small issues like POGO pins occasionally slipping out, the 3200D remains a solid contender in the sub-$100 category, combining Corsair's sleek design with modern features like USB-C and GPU anti-sag support.
