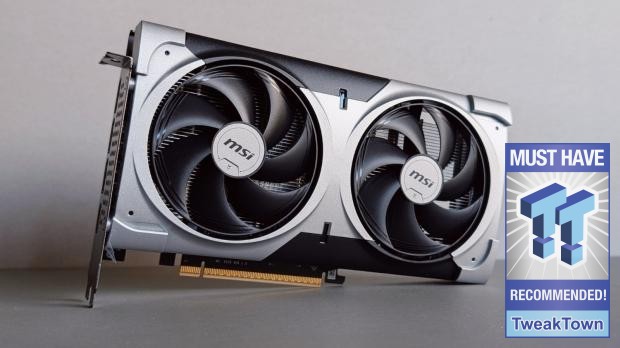

MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS Review

TweakTown Rating: 87%

Our Verdict

MSI's lightweight and compact GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is built for 1080p and 1440p gaming in the DLSS era, with it delivering impressive performance across a wide range of games. And with a small OC bump, it manages to eclipse the GeForce RTX 4070.

Pros

• Excellent 1440p performance, enhanced with DLSS
• DLSS 4 and 4.5 are both game changers for image fidelity
• 16GB of VRAM means bottleneck-free 1440p gaming
• Impressive 1080p Path Tracing performance
• Compact, lightweight, OC model

Cons

• Current GPU prices are a little out of control
• 4K performance drop-off is huge

Should you buy it?

AvoidConsiderShortlistBuy

Buy at Amazon for $514.99 USD

Buy at Newegg for $569.99 USD

Buy at Amazon for $849.99 CAD

Buy at Newegg for $799.99 CAD

Buy at Amazon for £507.68

Buy at PC Case Gear for $749

Introduction

Even before the current memory crisis, the debate over VRAM capacity in desktop gaming GPUs has been gaining traction over the past year. And even though companies like NVIDIA and AMD are developing AI-powered texture compression technologies that will dramatically reduce the VRAM requirement for a lot of games, there's an argument to be made that in 2026, 8GB of VRAM can often become a performance bottleneck. Maybe not so much when gaming at 1080p, but certainly a factor when you bump up the resolution to 1440p or 4K.

When NVIDIA launched the GeForce RTX 5060 Ti last year, it offered two models: a GeForce RTX 5060 Ti 8GB and a GeForce RTX 5060 Ti 16GB. With reviews and even retail stock squarely focused on the latter, there are effectively two classes of RTX 5060 Ti on the market. In this review of the lightweight, compact, and overclocked MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS, 1440p performance definitely benefits from double the VRAM capacity compared to both the 8GB variant and the baseline GeForce RTX 5060. In fact, as long as the price is right, as we're closing in on a year from its initial debut, the GeForce RTX 5060 Ti 16GB is proving to be one of the best value 1440p gaming cards out there, thanks to its raw performance and the arrival of DLSS 4 and DLSS 4.5.

Looking at the average performance across all the games we benchmarked, this MSI overclocked variant is around 4% faster than the reference design, which slightly edges out the popular GeForce RTX 4070 as a capable 1440p PC gaming graphics card. It's also around 20% faster than the mainstream GeForce RTX 5060, so for those looking for a bit more performance without having to shell out mid-range GeForce RTX 5070 prices, there's great value to be had. And with DLSS 4, you've got a GPU that can even deliver impressive path tracing performance at 1080p, opening the door to cinematic visuals that were basically impossible to pull off a few short years ago.

58

As for the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS, this OC variant of MSI's affordable VENTUS range is impressively compact and lightweight, making it one of those fantastic GPUs to pair with a DIY Steam Machine-like build that's meant to sit alongside or underneath a big screen TV. And even with notable boosts in clock speeds and specs, thermal performance is no longer an issue thanks to the revamped VENTUS design for the GeForce RTX 50 Series.

Best Deals: MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS

	Today	7 days ago	30 days ago
	$514.99 USD	-	$514.99 USD	Buy
	$569.99 USD	$569.99 USD	-	Buy
	$849.99 CAD	$849.99 CAD	$849.99 CAD	Buy
	$799.99 CAD	$799.99 CAD	-	Buy
	£507.68	£559.99	£493.47	Buy
	$514.99 USD	-	$514.99 USD	Buy
	$749	$749	-	Buy
	Check Price	Check Price	Check Price	Buy
* Prices last scanned 5/21/2026 at 8:03 pm CDT - prices may be inaccurate. As an Amazon Associate, we earn from qualifying purchases. We earn affiliate commission from any Newegg or PCCG sales.

RTX Blackwell - NVIDIA's Gaming Architecture for the AI Era

Below is a summary of NVIDIA's GeForce RTX 50 Series and RTX Blackwell architecture, applicable to all models.

NVIDIA describes 'Neural Rendering,' which includes all previous versions of DLSS and the brand-new DLSS 4, as the 'next era for computer graphics.' They're not alone; the Lead System Architect for the PlayStation 5 Pro console, Mark Cerny, said that ray-tracing is the future of games and that AI will play an integral role in making that happen. DOOM: The Dark Ages developer id Software shared a similar sentiment, adding that the arrival of DLSS was an 'inflection point' for PC game visuals and performance, and on par with the arrival of dedicated GPUs and programmable shaders.

With the arrival of the Blackwell generation and the GeForce RTX 50 Series, AI is now being used to accelerate programmable shaders with the brand-new RTX Neural Shaders. Yes, these are actual neural networks that use live game data, and the power of Tensor Cores to do everything from compress textures, render lifelike materials with a level of detail impossible to match using traditional rendering methods, and even use AI to partially trace rays and then infer "an infinite amount of rays and bounces for a more accurate representation of indirect lighting in the game scene."

58

RTX Mega Geometry is impressive in its own right; it essentially increases a scene's geometry detail and complexity (triangles or polygons) by up to 100x. 100 times the detail, it's hard to wrap your head around - but the added benefit in a game like Alan Wake 2 is dramatically improving the performance of the game's Full Ray Tracing or Path Tracing mode. With DLSS 4.5 and RTX Neural Shaders, NVIDIA's GeForce RTX 50 Series and RTX Blackwell architecture (which includes the same AI optimizations as data center Blackwell) can be viewed as the turning point for PC gaming - the moment when AI becomes integral to everything from designing a game to programming and then finally rendering it on a 4K display to play.

DLSS 4 and 4.5 include more goodies than NVIDIA's highly touted new Multi Frame Generation technology, but let's start there. DLSS 3's version of Frame Generation has evolved with DLSS 4, powered by Blackwell hardware and software, and an innovative use of AI to generate frames 40% faster while using 30% less VRAM. Switching to a new model also means that Frame Generation and Multi-Frame Generation could eventually come to GeForce RTX 20, 30, and RTX 40 Series owners. DLSS 4 benefits all GeForce RTX gamers.

However, with the 5th Generation of Tensor Cores in the GeForce RTX 50 Series delivering 2.5X more AI performance, NVIDIA's latest GeForce RTX 50 Series GPUs can execute five complex AI models - covering Super Resolution, Ray Reconstruction, and Multi Frame Generation in a couple of milliseconds. Part of the reason it happens so quickly is the addition of hardware Flip Metering, which shifts frame pacing to the Blackwell display engine, resulting in frame rates of up to 240 FPS at 4K and higher without stuttering. With up to 15 of every 16 pixels generated by AI, the result is up to 8X the performance when compared to native rendering or rasterized performance.

58

DLSS Super Resolution and Ray Reconstruction are also switching to a new 'Transformer' model, with over double the number of parameters and four times the compute requirements. This is one of the most exciting aspects of the GeForce RTX 50 Series, as it pushes DLSS into a new realm of image quality and performance. DLSS 4.5 takes this even further. The best part is that it works on all GeForce RTX GPUs; however, there will be a performance hit compared to running it on an RTX 50 Series GPU. Already available in 250+ games, DLSS 4 and 4.5's Transformer model is another DLSS 2.0-like moment for the technology, and the results speak for themselves.

Even better, DLSS is now integrated into the NVIDIA App with the 'DLSS Override' feature that allows users to experience the latest tech without waiting for a patch or game update. It doesn't stop there, as the new AI Management Processor (AMP) allows AI models to share the GPU with graphics workloads. As a result, expect to see digital humans in games, alongside AI assistants like NVIDIA's Project G-Assist, becoming more prevalent in the coming years. This filters down to the creator side, with AI assistants for streamers, who also benefit from the GeForce RTX 50 Series' expanded creator features.

RTX Blackwell introduces 4:2:2 chroma-sampled video encoding and decoding. The ninth-generation NVENC encoder also improves AV1 and HEVC quality. The flagship GeForce RTX 5090 supports up to three encoders and two decoders, delivering a 50% gen-over-gen speed improvement over the GeForce RTX 4090. The GeForce RTX 5080 adds a second decoder compared to the GeForce RTX 4080. RTX Blackwell is a game-changer for creators and editors, especially with its new low-voltage, cutting-edge GDDR7 memory that dramatically improves bandwidth and speed.

Specs and Test System

Specifications

Here's a look at the specs of the GeForce RTX 5060 Ti compared with the previous-generation GeForce RTX 4060 Ti, GeForce RTX 3060 Ti, and its current-generation older sibling, the GeForce RTX 5070.

The GeForce RTX 50 and RTX 40 Series share a similar custom TSMC 4N process, a first for an RTX generation, so when you look at the specs, the GeForce RTX 5060 Ti doesn't really look like much of an upgrade over the previous generation's GeForce RTX 4060 Ti. In fact, with only 5.9% more CUDA Cores, Tensor Cores, and RT Cores, the numbers you see above make it seem like more of a GeForce RTX 4060 Ti SUPER than a generational leap forward. Thankfully, that's not the case, as even though the RTX Blackwell generation shares the same underlying process technology as its RTX Ada Lovelace predecessor, NVIDIA has made several architectural improvements and refinements to enhance performance while also paving the way for more advanced Neural Rendering like DLSS 4's Multi Frame Generation and DLSS 4.5's new Dynamic Frame Generation.

And with that, that's why the GeForce RTX 5060 Ti 16GB GPU can deliver 1440p gaming performance on par with the GeForce RTX 4070. Also contributing to the performance bump is the shift to faster GDDR7 memory; on that front, 16GB of GDDR7 memory over a 128-bit interface delivers 448 GB/sec of memory bandwidth, compared to the RTX 4060 Ti's 288 GB/sec with GDDR6. The GeForce RTX 5060 Ti 16GB is also a more capable GPU for running complex AI workloads, as the addition of FP4 support more than doubles the effective AI performance to 759 TOPS.

58

As a compact GPU designed for efficiency, unlike higher-tier models in the GeForce RTX 50 Series lineup, it requires only 180W of power, delivered via a single traditional 8-pin PCIe power connector, ensuring broader compatibility with older rigs that might need an upgrade. Even though this might factor into the GeForce RTX 5060 Ti shipping with a similar boost clock speed as the GeForce RTX 4060 Ti, the good news is that there's extra headroom for overclocking, with the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS increasing the reference-spec clock speed of 2572 MHz to 2617 MHz. This increase is just shy of 50 MHz, but as we've seen with the entire GeForce RTX 50 Series lineup, it can be pushed into triple digits to boost performance.

Kosta's Test System

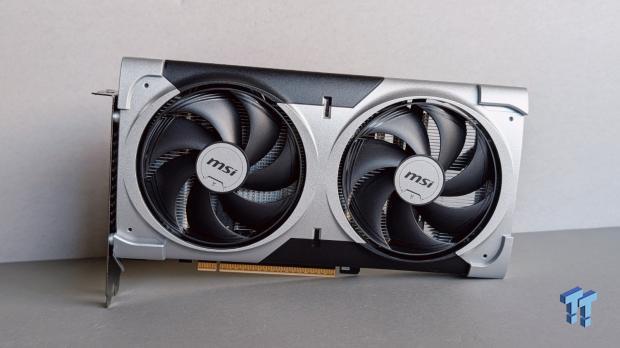

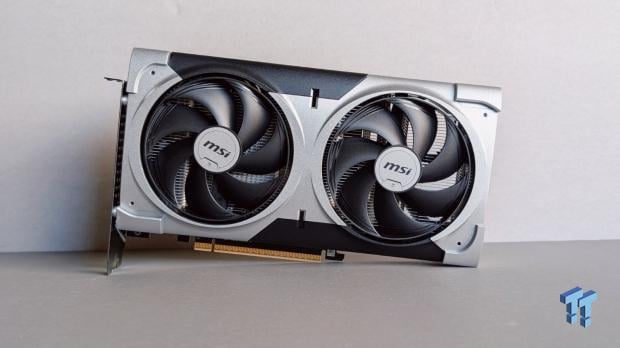

Physical Design and Cooling

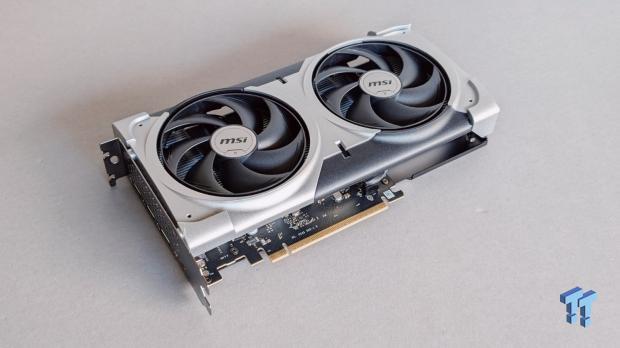

As MSI's entry-level GPU design, the VENTUS series does away with things like RGB lighting for a more streamlined approach that fully embraces the idea that a modern GPU doesn't have to be this massive thing that takes up a big chunk of the free space inside a chassis. With the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS, you've basically got one of MSI's smallest, lightest, and most compact GeForce RTX 50 Series GPUs, with its dual-fan cooler, 227mm length, dual-slot thickness, and 600 gram weight. It's the sort of card that won't have any issue slotting into most builds, including Mini-ITX ones.

58

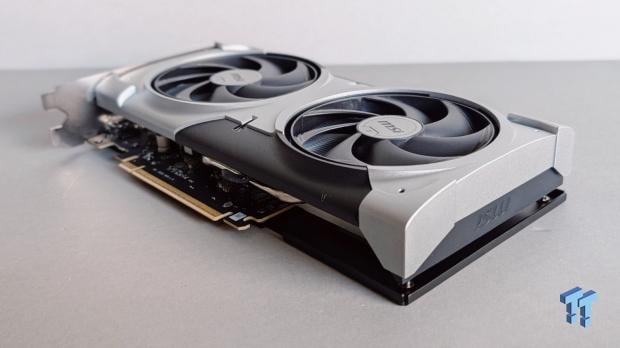

The black-and-silver/grey look of the standard VENTUS design (there's also a more stylish-looking all-white variant) is simple and unobtrusive. Here you've got two of MSI's high-performance STORMFORCE fans, which feature seven textured blades and an overall design that improves airflow compared to previous-gen fans, with minimal noise to boot. Throw in custom heatpipes for heat transfer and a vented metal backplate, as well as clay-based thermal pads for components, and a PCB with safeguards and premium power delivery, and the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS might be small, but its 'Zero Frozr' cooling is effective.

58

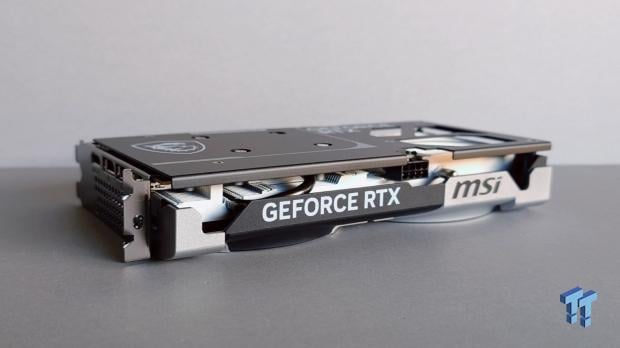

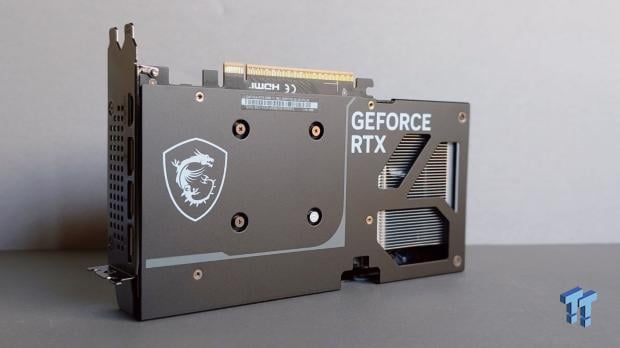

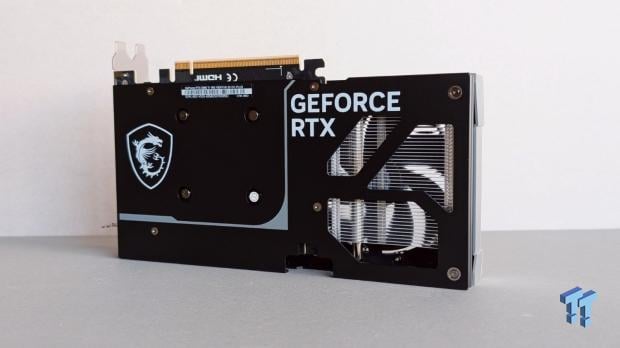

Although unassuming, the physical design does feature a lot of branding for a compact GPU, with the MSI and MSI Dragon logos present on all sides of the card alongside big 'GeForce RTX' branding on the backplate and side. This is more of an observational criticism: branding doesn't affect performance, but we would like to see MSI go full minimal with its VENTUS range in the future and tone down the branding to let the GPU as a whole stand out. Ultimately, the big thing here is that MSI has delivered a compact, lightweight, overclocked GeForce RTX 5060 Ti 16GB card with a matching thermal design.

The Games and Tests

PC gaming spans a wide range of genres and styles, from indie games with simple 2D graphics to massive 3D worlds lit by cutting-edge real-time ray tracing. With that, each gamer's needs and requirements vary. High refresh rates and reduced latency are more important than flashy visuals or playing at the highest resolution possible for those who live and breathe fast-paced competitive games. For those who want to live in a cinematic world and become a key player in an expansive narrative, ray tracing and high-fidelity visuals are a stepping stone toward greater immersion.

58

Our chosen benchmarks cover various games, engines, APIs, and technologies. For the GeForce RTX 5060 Ti, all tests are run at 4K, 1440p, and 1080p, and include results for performance-boosting Super Resolution technologies like NVIDIA DLSS 4 - including Frame Generation and Multi Frame Generation. In many ways, DLSS numbers are more important than native rendering - a title with ray tracing isn't meant to be played without Super Resolution. Also, DLSS technologies like Ray Reconstruction dramatically improve visual fidelity and detail compared to native rendering. However, our benchmark results are still sorted using 'raw performance' or native rendering.

Here's the breakdown of games, settings, and what's being tested.

Games and Settings Benchmarked

Path Tracing Games and Settings Benchmarked

GPUs Included in Our Testing

Offering a wide range of GPUs for comparison adds much-needed context when evaluating overall performance, efficiency, and value. Here's the full list of GPU models included in the results: INNO3D GeForce RTX 5060 8GB TWIN X2 OC, SAPPHIRE Radeon RX 9060 XT 16GB PULSE OC, MSI GeForce RTX 5060 Ti Ventus 2X 16GB, NVIDIA GeForce RTX 4070 Founders Edition, MSI GeForce RTX 4070 Ti GAMING X TRIO, NVIDIA GeForce RTX 5070 Founders Edition, GIGABYTE Radeon RX 9070 GAMING OC, ASRock Radeon RX 9070 XT Steel Legend, MSI GeForce RTX 5070 Ti Ventus 3X, NVIDIA GeForce RTX 5080 Founders Edition.

Gaming Performance Analysis

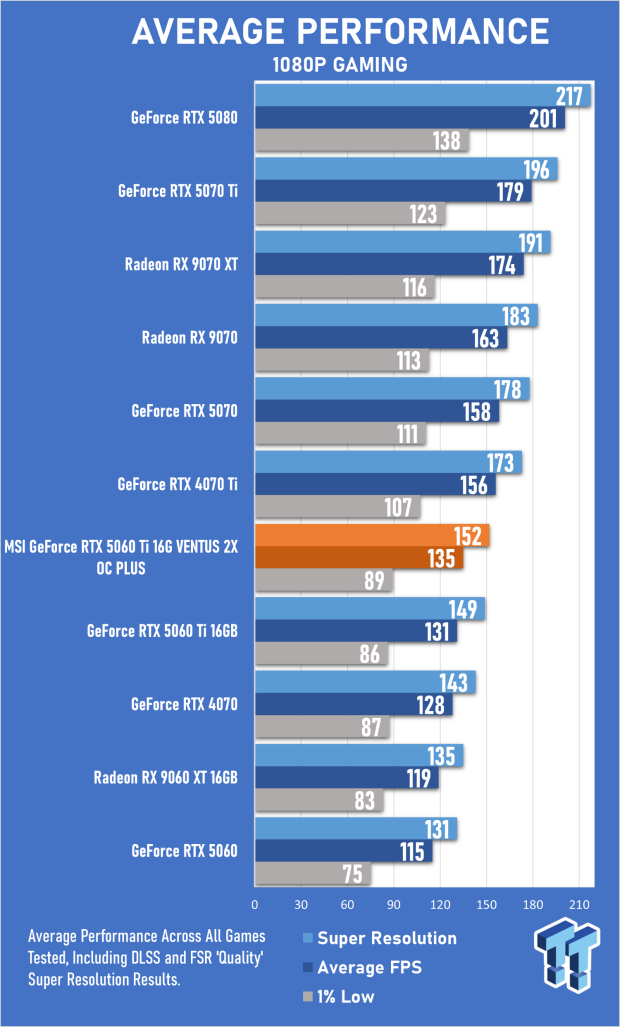

Average Gaming Performance - 1080p Results

58

The MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is a powerful 1080p gaming GPU, delivering performance that is, on average, 17.4% faster than the GeForce RTX 5060, 13.4% faster than the Radeon RTX 9060 XT, and 5% faster than the GeForce RTX 4070. This MSI overclocked variant is also around 3% faster than the reference design at this resolution. With an average frame rate of 135 FPS, which increases to 152 FPS when you enable DLSS 4 with the 'Quality' Super Resolution setting, the results are impressive.

All of our in-game benchmark tests also include running titles with Very High or Ultra-like settings, so the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is a card that can deliver high visual fidelity while maintaining excellent performance at 1080p. The only test in our benchmark suite where you could say DLSS is a requirement is playing Cyberpunk 2077 with the Ultra ray-tracing preset, as raw non-DLSS performance sits just below 60 FPS. Looking at higher-tier cards, the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS's 1080p performance is, on average, 17% slower than the GeForce RTX 5070 and 21% slower than the Radeon RX 9070.

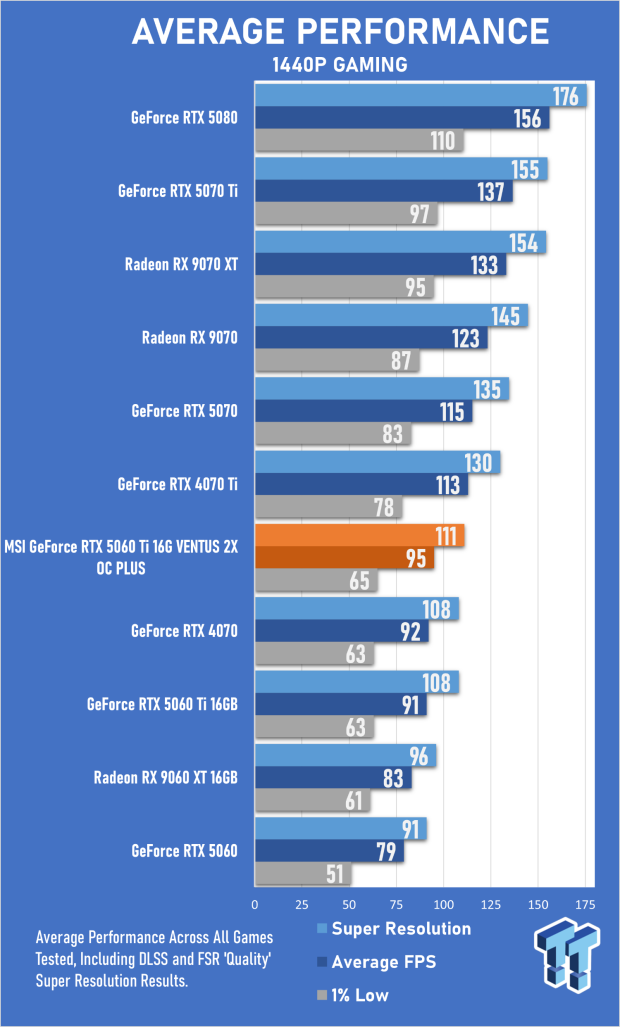

Average Gaming Performance - 1440p Results

58

What makes the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS a great option for 1440p gaming is the fact that its decent raw performance at this resolution benefits immensely from DLSS Super Resolution. Using the Quality preset at 1440p delivers native-like results with impressive detail and clarity, so the DLSS average of 111 FPS at this resolution is more relevant than the native-rendering average of 95 FPS. With DLSS, demanding titles like Assassin's Creed Shadows and F1 25 can be played at 60+ FPS, with the only title falling short here, again, being Cyberpunk 2077 with the Ultra ray-tracing preset. DLSS is a definite selling point and incredible feature, as it helps unlock a new tier of performance and solidifies the GeForce RTX 5060 Ti 16GB as a great 1440p GPU.

Based on average 1440p performance, the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is 20% faster than the GeForce RTX 5060 and 14% faster than the Radeon RX 9060 XT 16G. It's also around 3% faster than the GeForce RTX 4070 and 4% faster than the reference-spec GeForce RTX 5060 Ti. Overclocking is a small but notable factor that makes this OC PLUS variant more impressive than the standard 2X model. Looking at the relative performance compared to higher-tier cards, this overclocked GeForce RTX 5060 Ti is around 21% slower than the GeForce RTX 5070 and around 30% slower than the Radeon RX 9060 XT when gaming at 1440p.

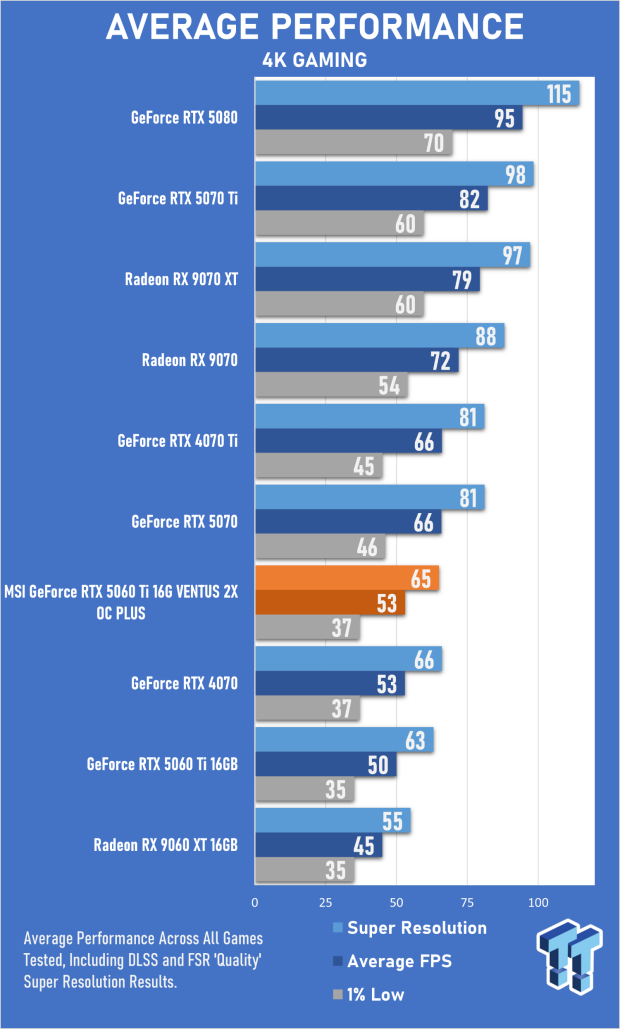

Average Gaming Performance - 4K Results

58

When it comes to 4K gaming, the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS performs on par with the GeForce RTX 4070. But when you look at individual game results, the RTX 4070 pulls ahead in the most demanding titles. When it comes to 4K gaming, it's around 25% slower than the GeForce RTX 5070 and around 36% slower than the Radeon RX 9070. Now, even though using the DLSS Performance preset at 4K can help to push 60+ FPS at this resolution, the limitations of the GeForce RTX 5060 Ti GPU make it a better choice for 1440p. Here, it needs much more than 16GB of VRAM to match the performance of cards like the GeForce RTX 5070 Ti.

Benchmarks - 3DMark Synthetic Tests

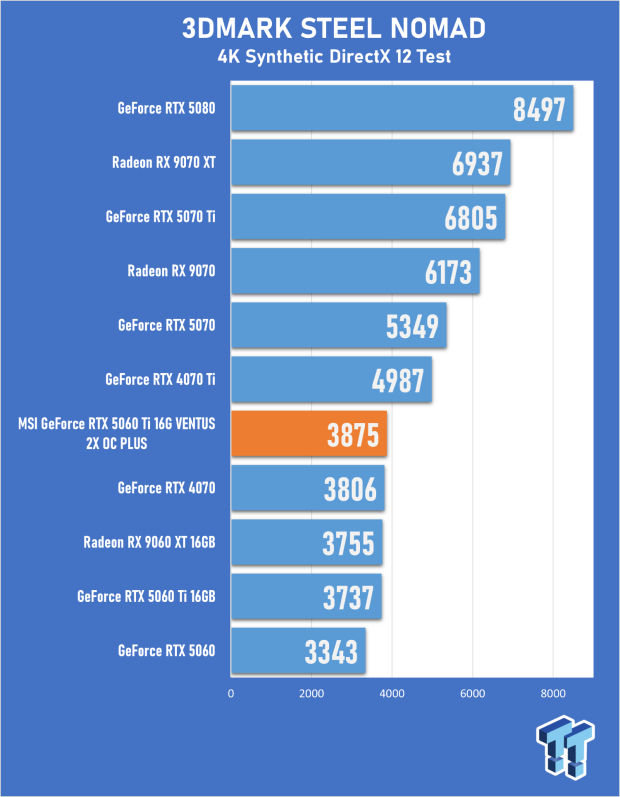

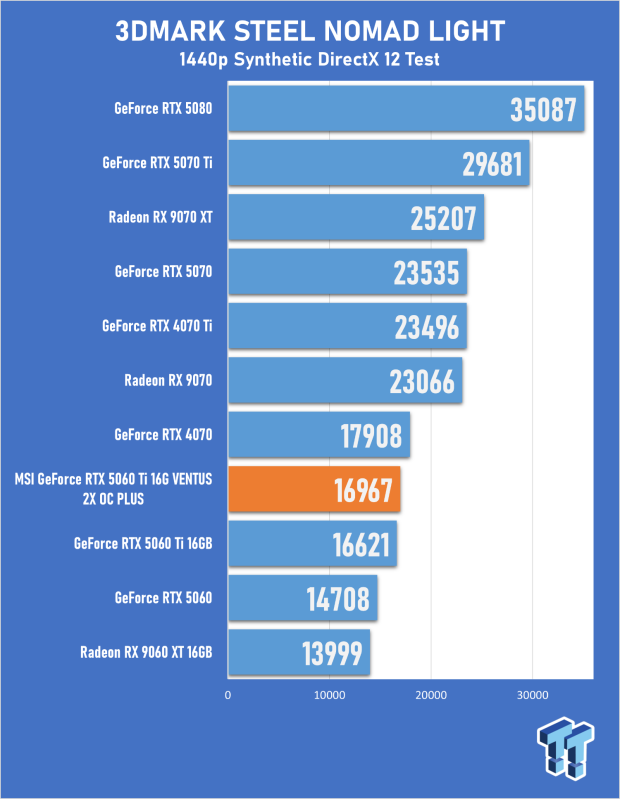

3DMark offers a suite of synthetic benchmarks built to test GPUs in various scenarios. 3DMark Steel Nomad is a cutting-edge DirectX 12 benchmark that uses modern rendering techniques to push GPUs to their limits. The 'Light' version tests at 1440p, while the main Steel Nomad benchmark tests pure native 4K rendering. Port Royal is a benchmark focused exclusively on real-time ray tracing for lighting effects, including reflections, shadows, and more.

Although the ranking here closely resembles what we found when running real-world gaming benchmarks, the synthetic 3DMark Steel Nomad and Steel Nomad Light results present a slightly different picture. However, when it comes to the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS's performance in relation to the baseline GeForce RTX 5060, the 16% difference in score, in favor of the RTX 5060 Ti, is pretty close to the 15-20% performance gap you'll find when gaming at 1080p and 1440p. The big discrepancy comes when comparing the results with the Radeon RX 9060 XT 16GB, which is arguably a direct competitor of the GeForce RTX 5060 Ti 16GB GPU, even though it's a more affordable option. Here we see both cards perform roughly the same on the 4K Steel Nomad benchmark, with the RTX 5060 Ti delivering a score that's 21% higher on the 1440p version.

58

Switching over to the ray-tracing focused Port Royal benchmark, here we see the big improvements that AMD has made with its RDNA 4 generation, as the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS's score here is only 11% higher than the Radeon RX 9060 XT's score. The results here more closely match what we see in games with hardware-intensive ray-tracing modes like Cyberpunk 2077, with the RTX 5060 Ti's score showcasing its performance advantage over the baseline GeForce RTX 5060 while falling short of the GeForce RTX 5070 and the Radeon RX 9070.

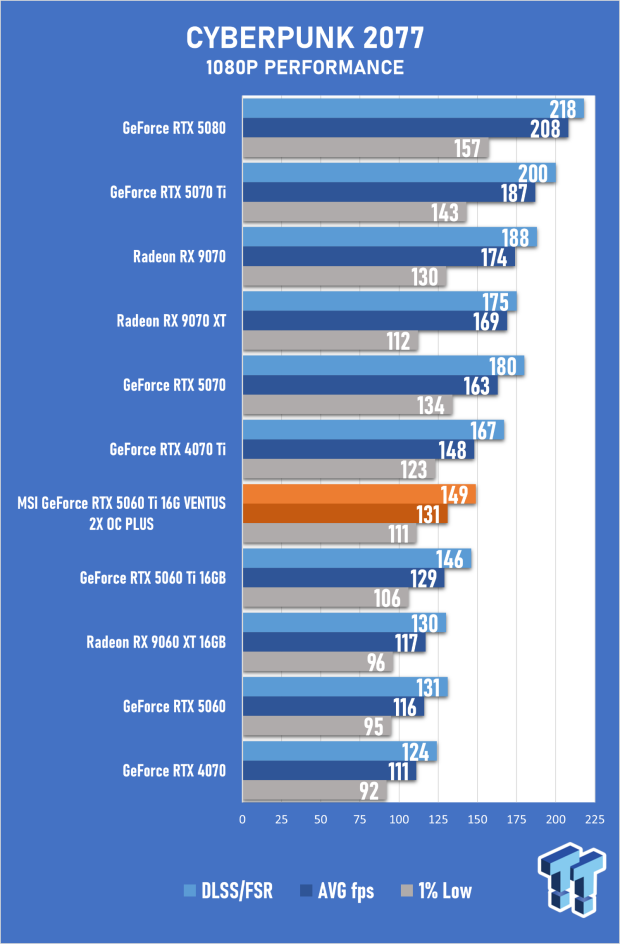

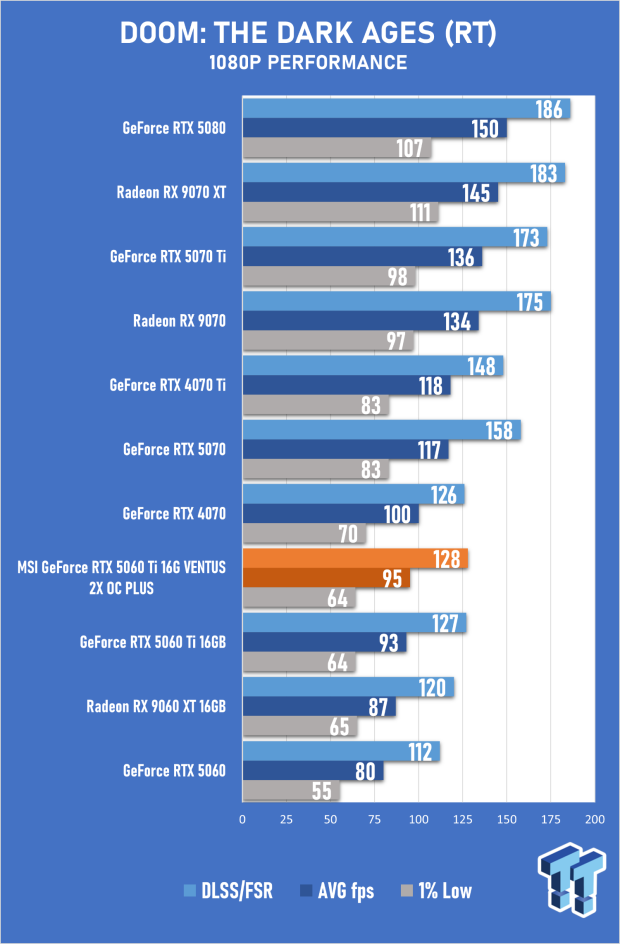

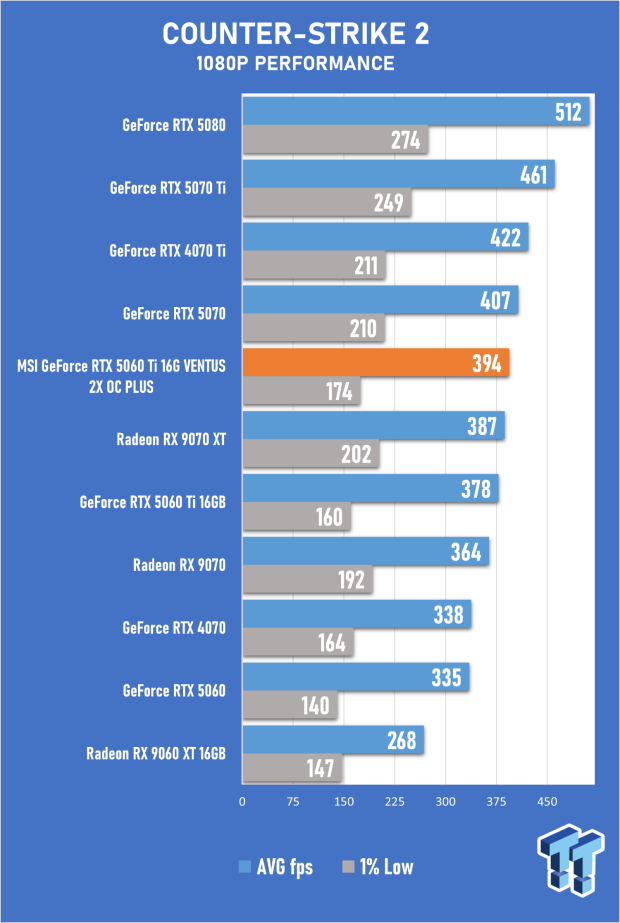

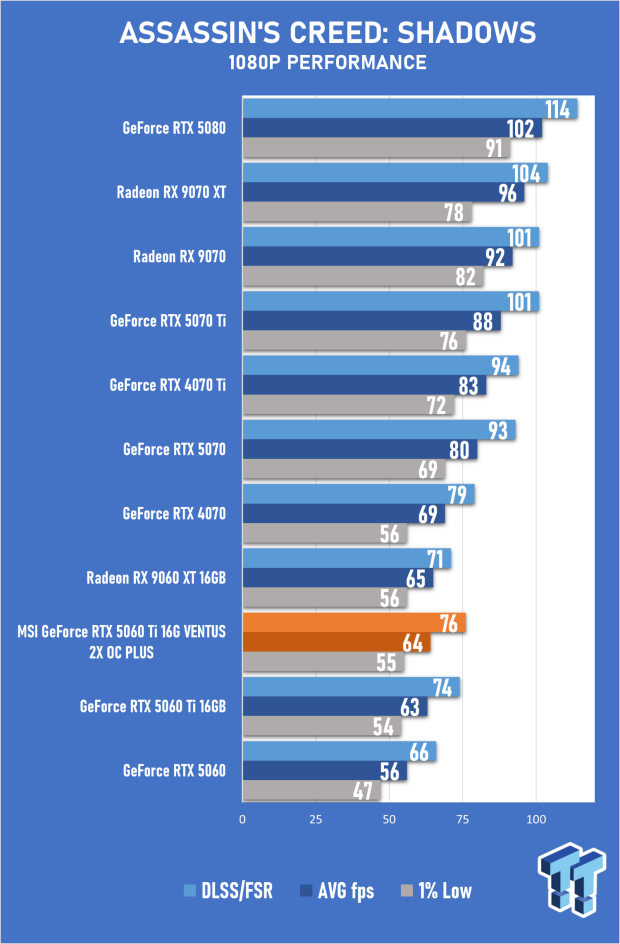

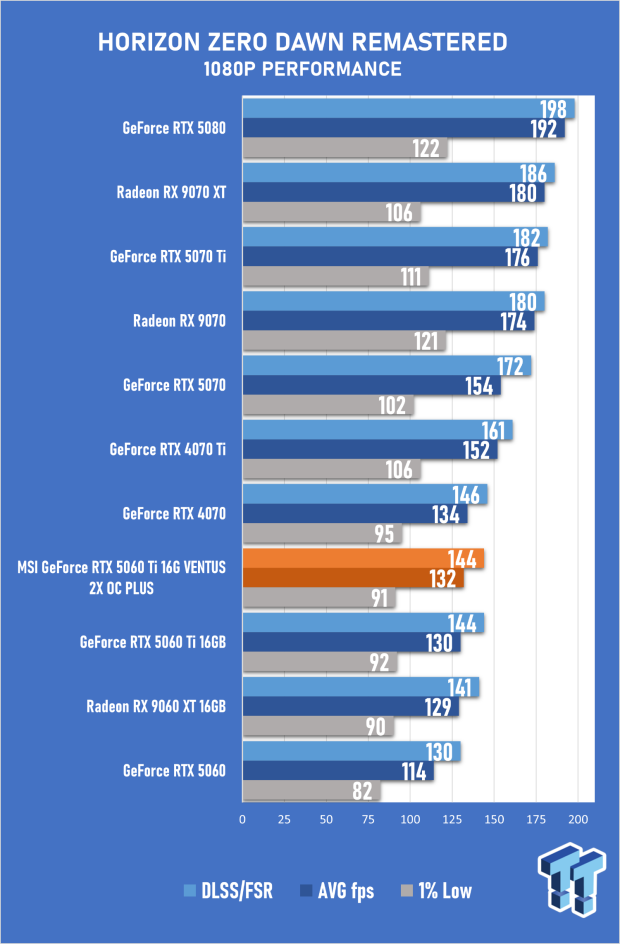

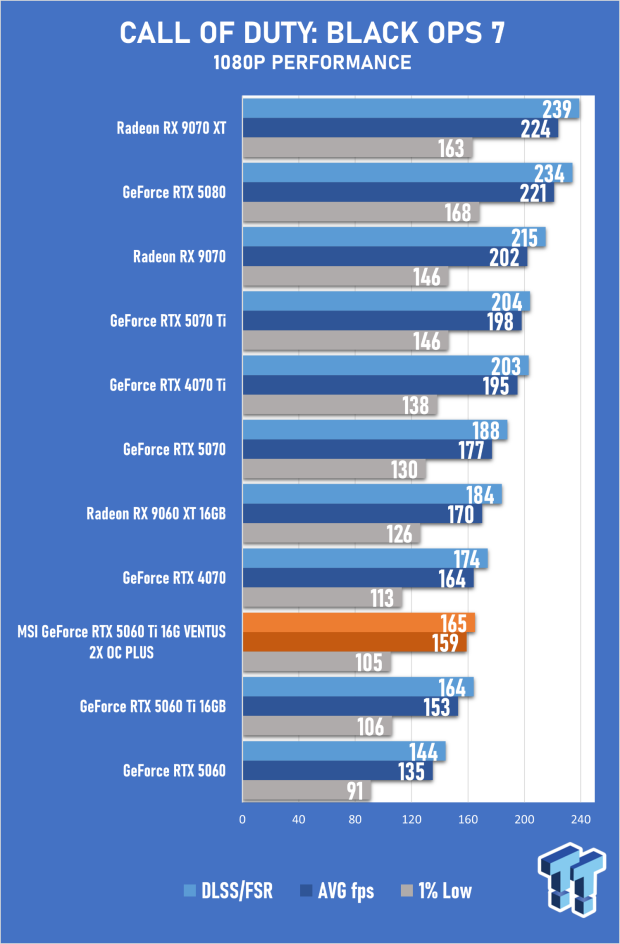

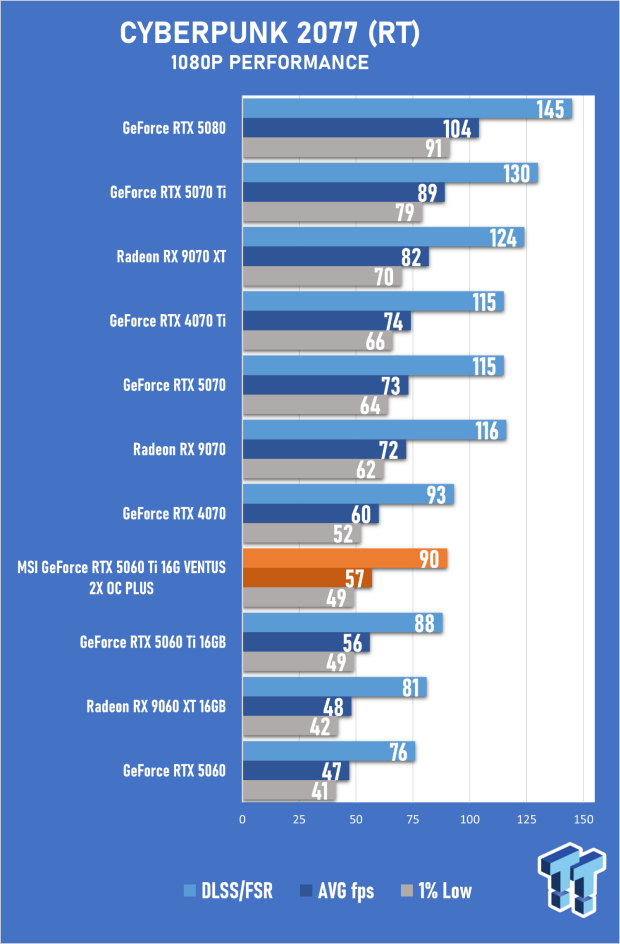

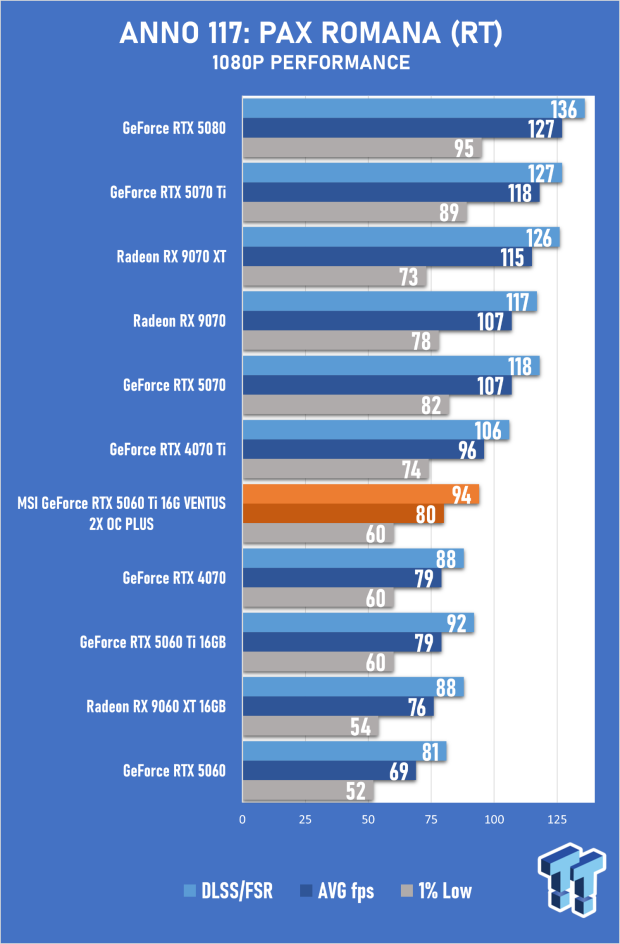

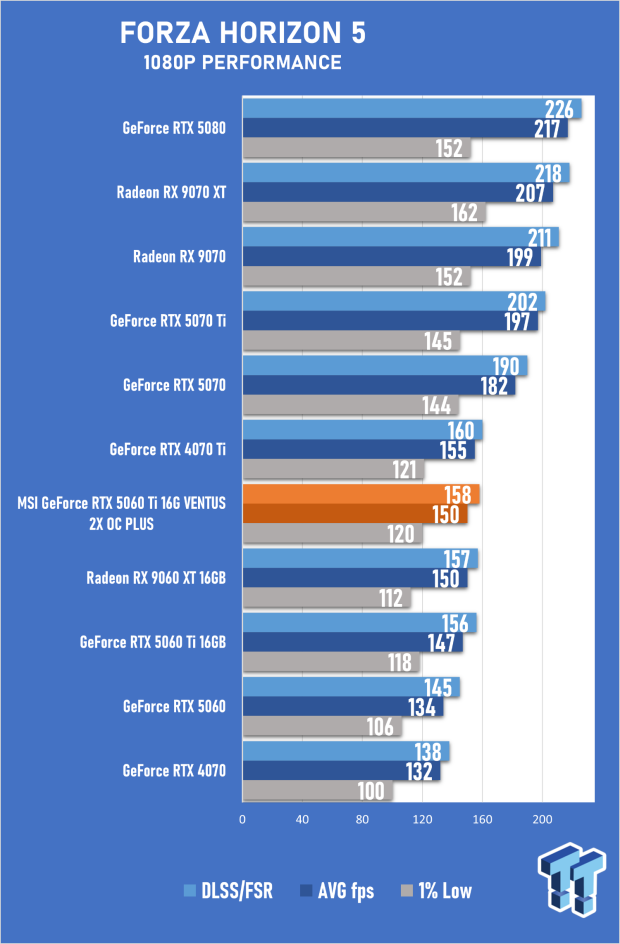

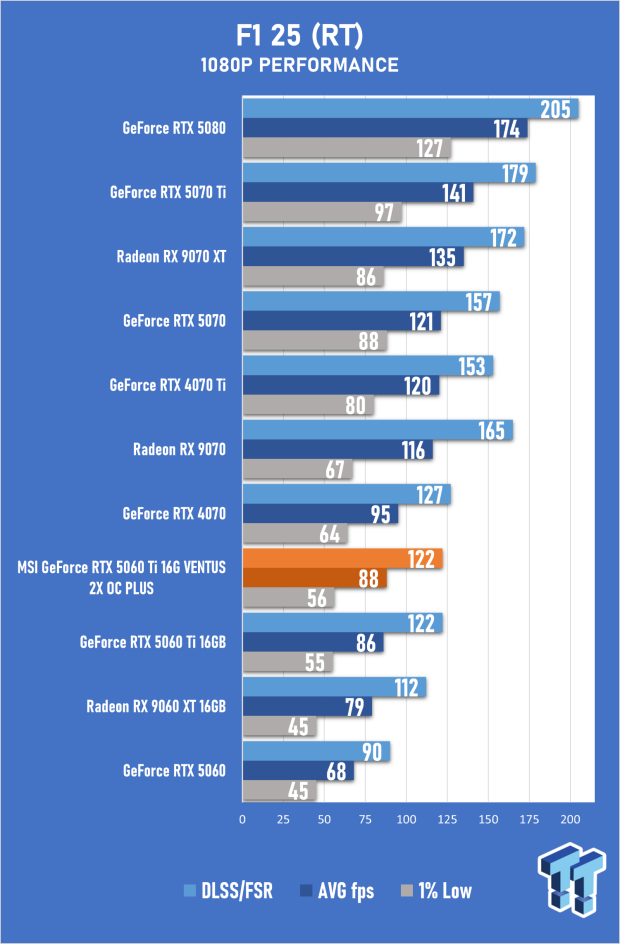

Benchmarks - 1080p Gaming

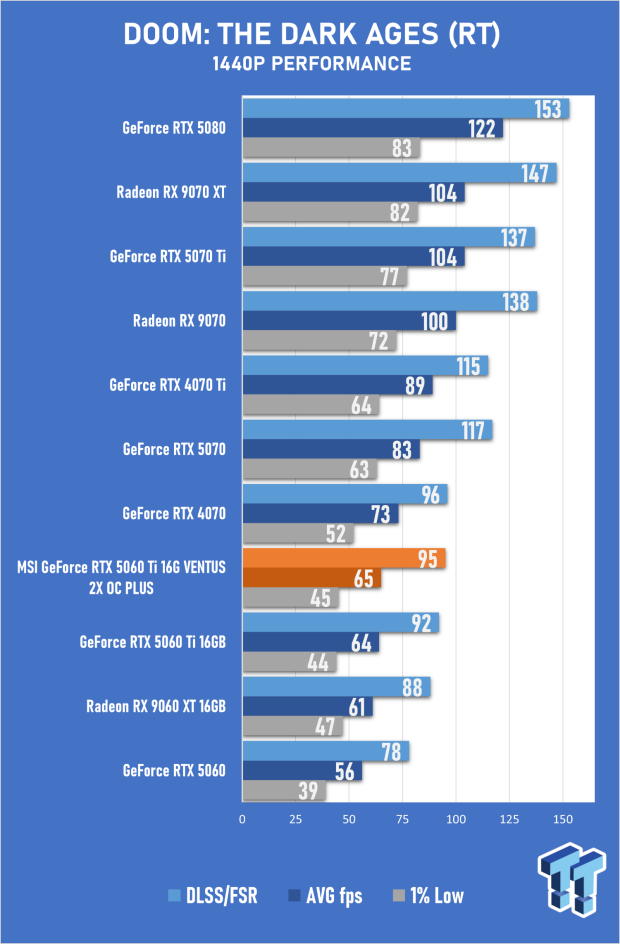

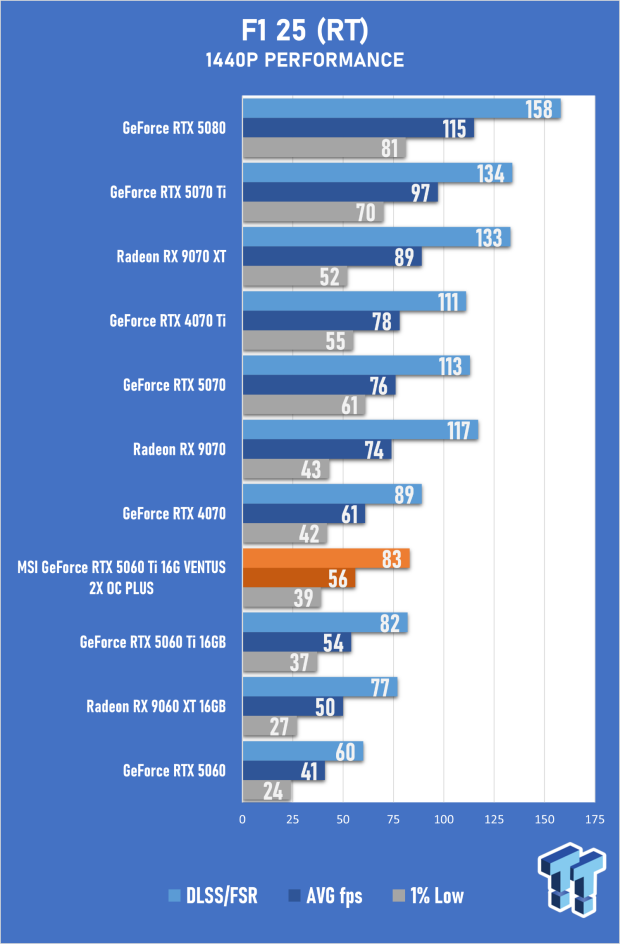

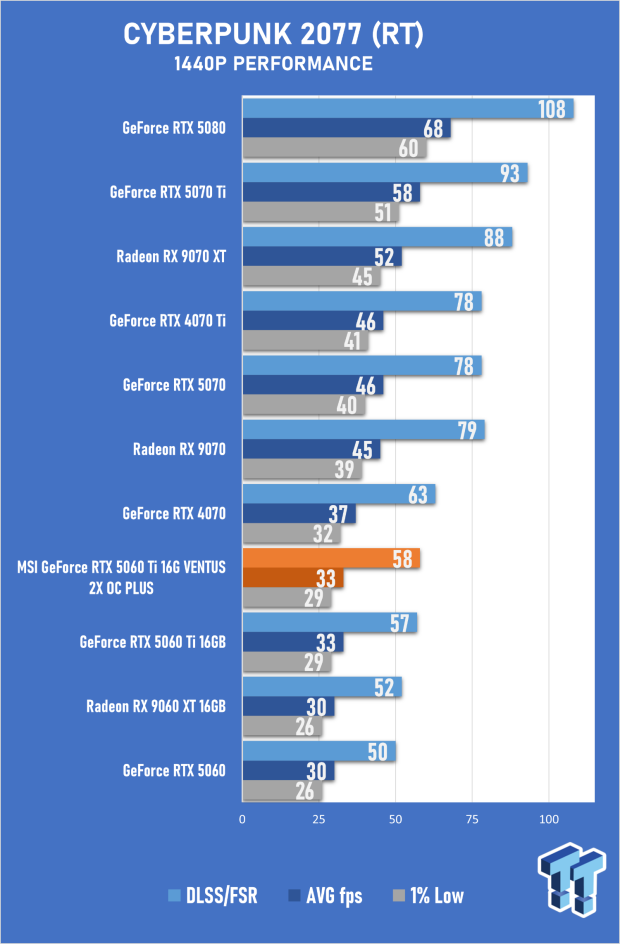

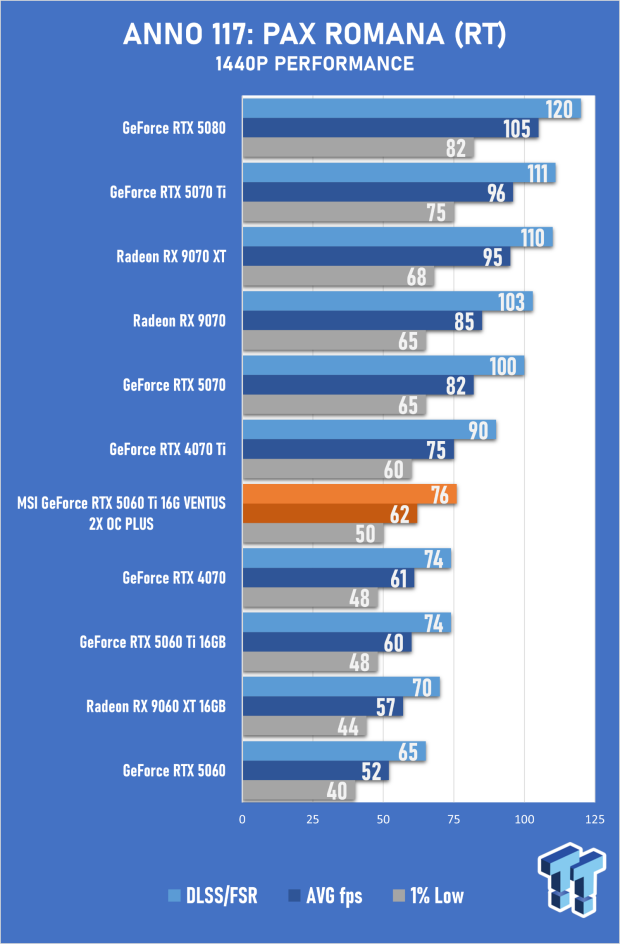

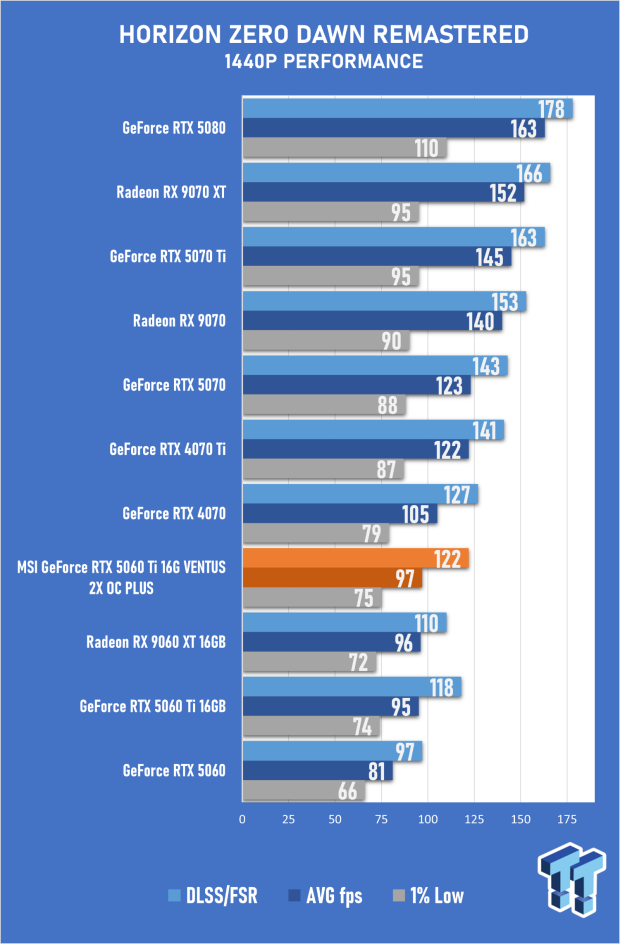

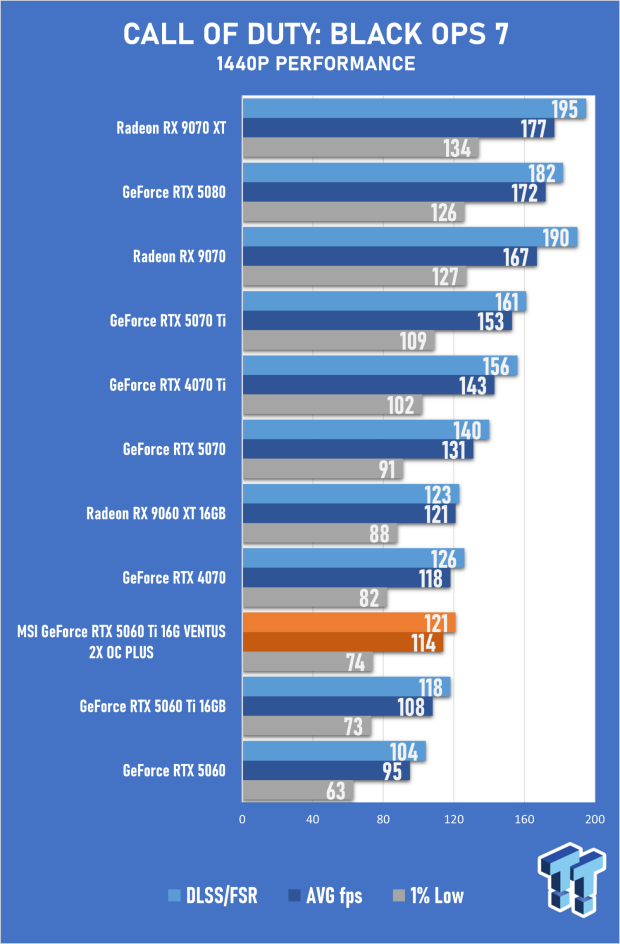

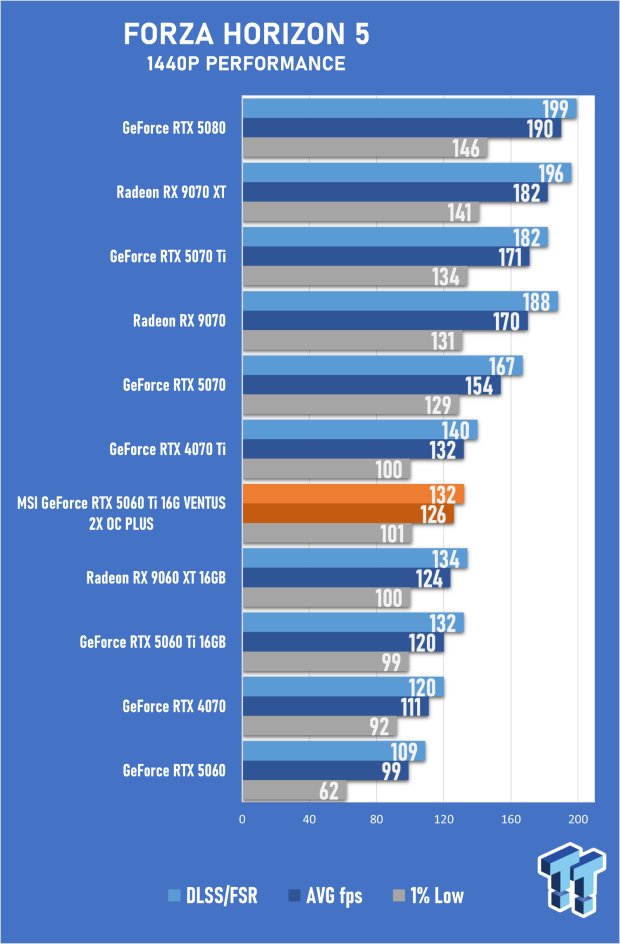

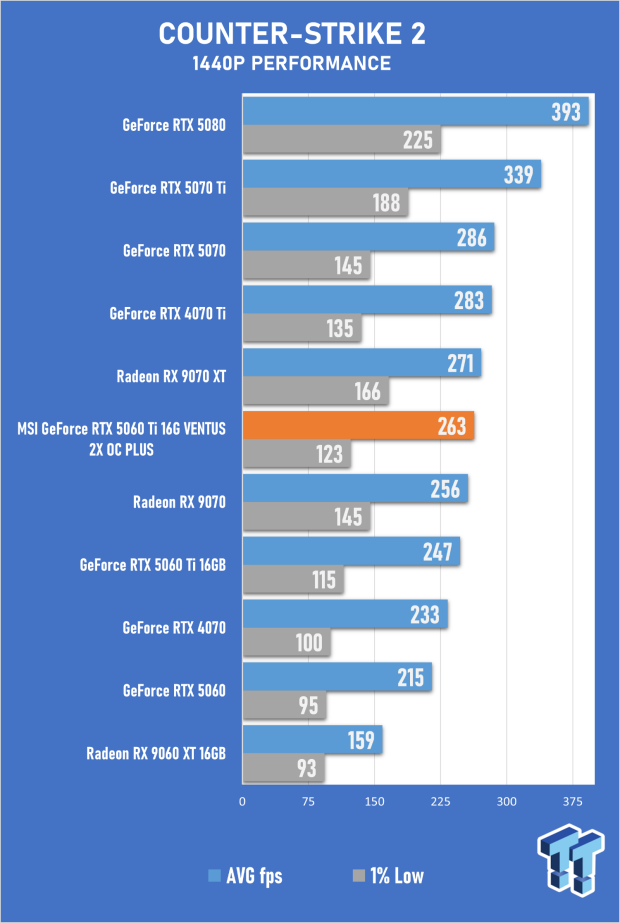

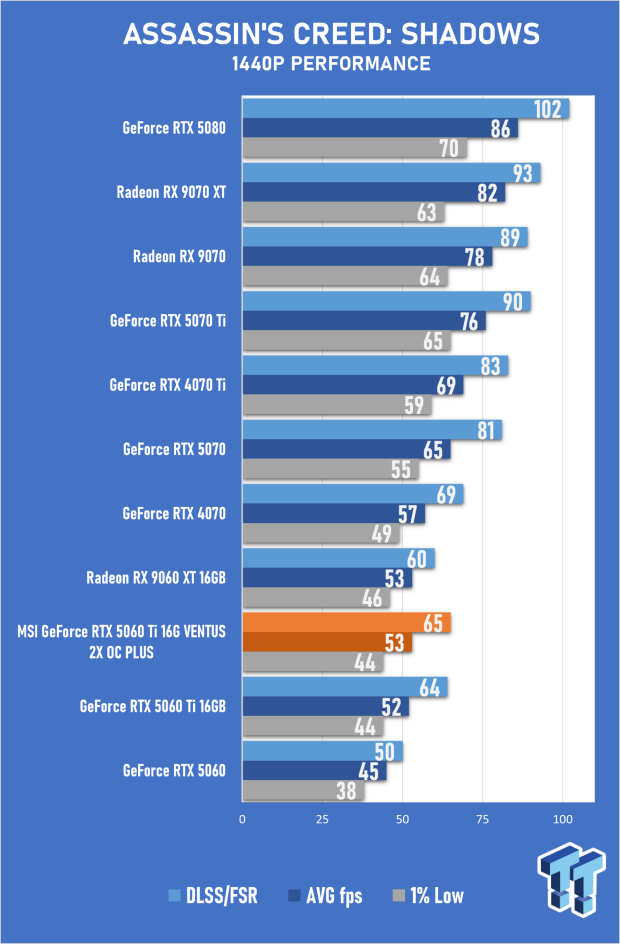

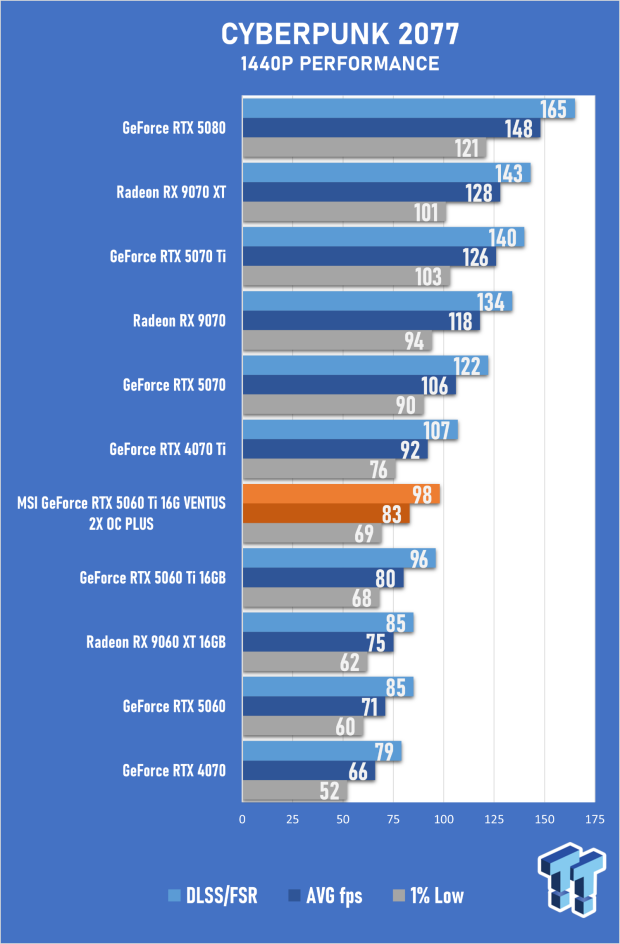

Benchmarks - 1440p Gaming

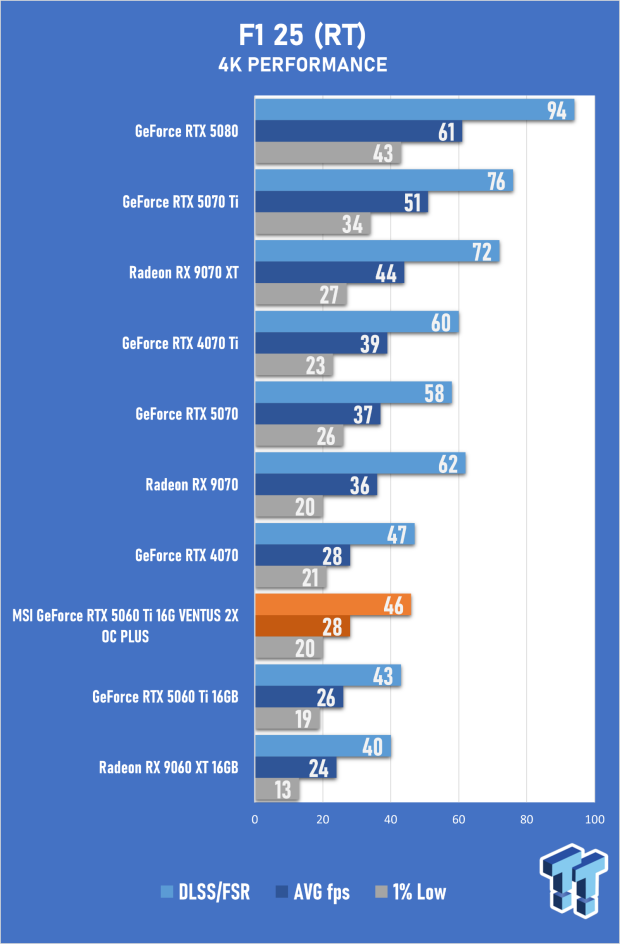

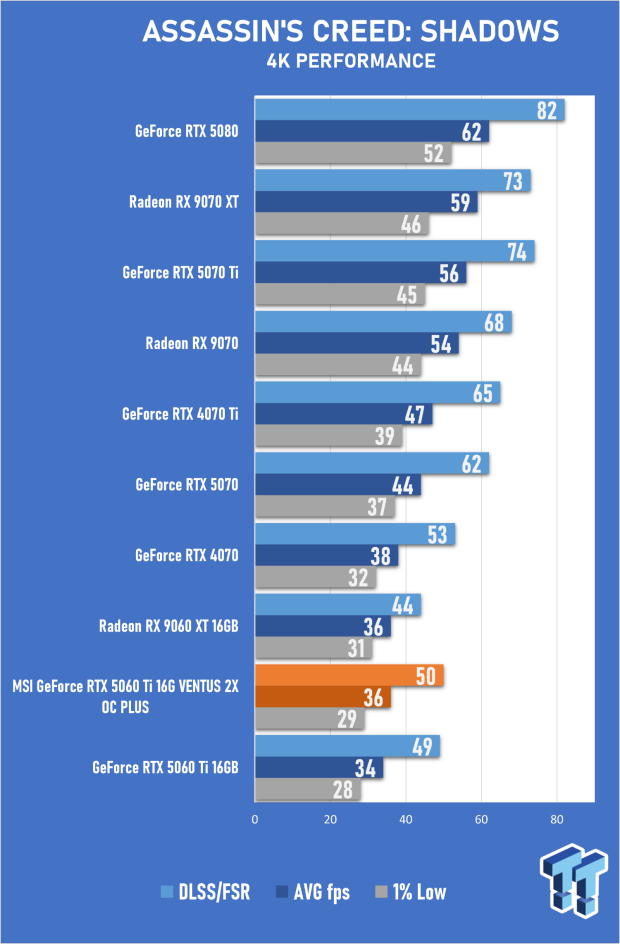

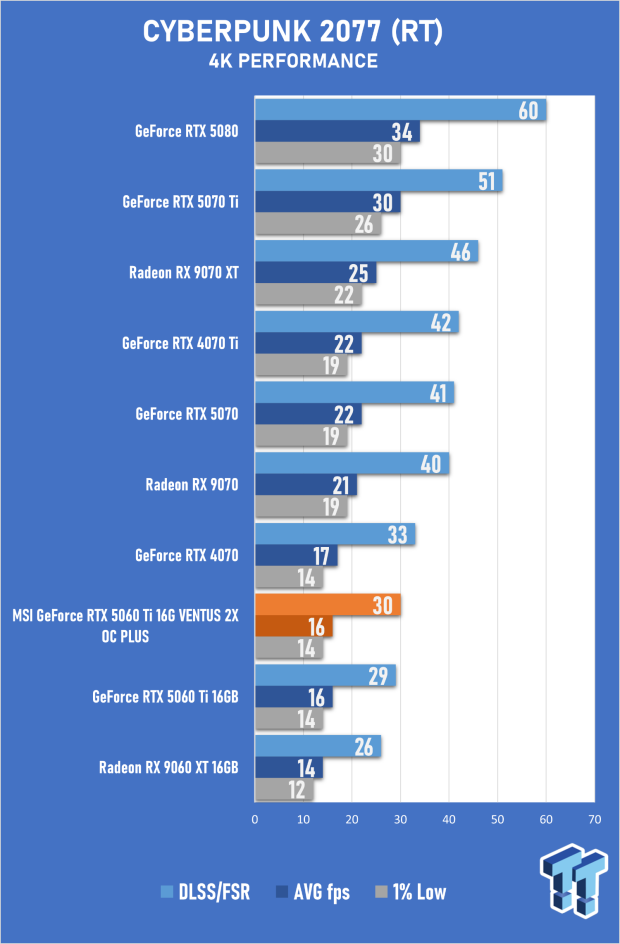

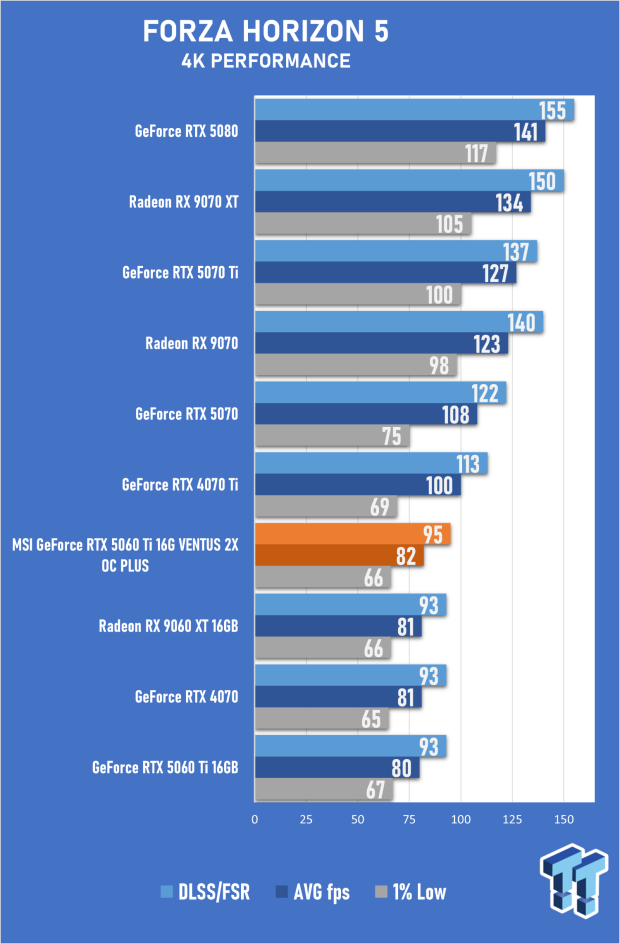

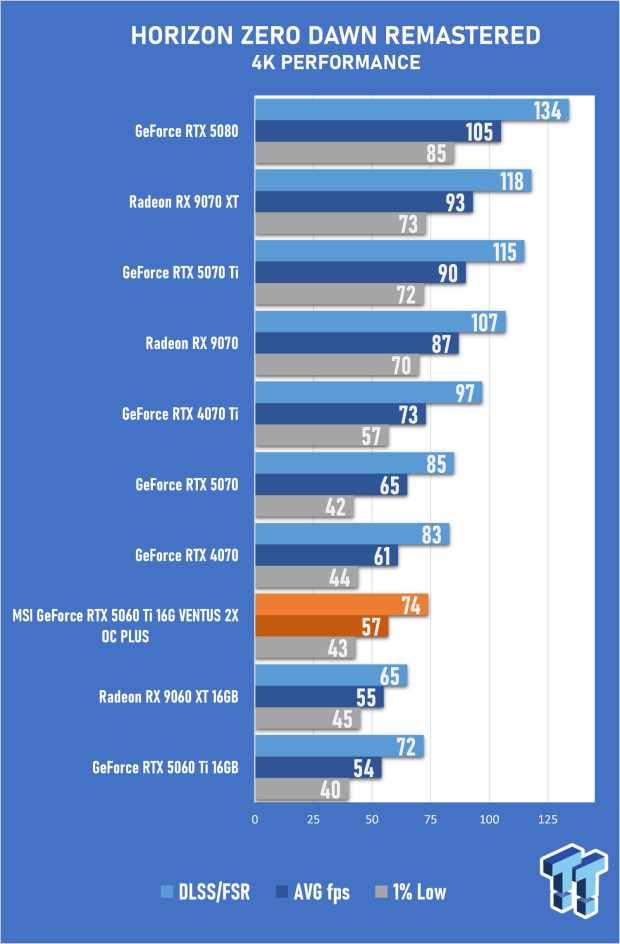

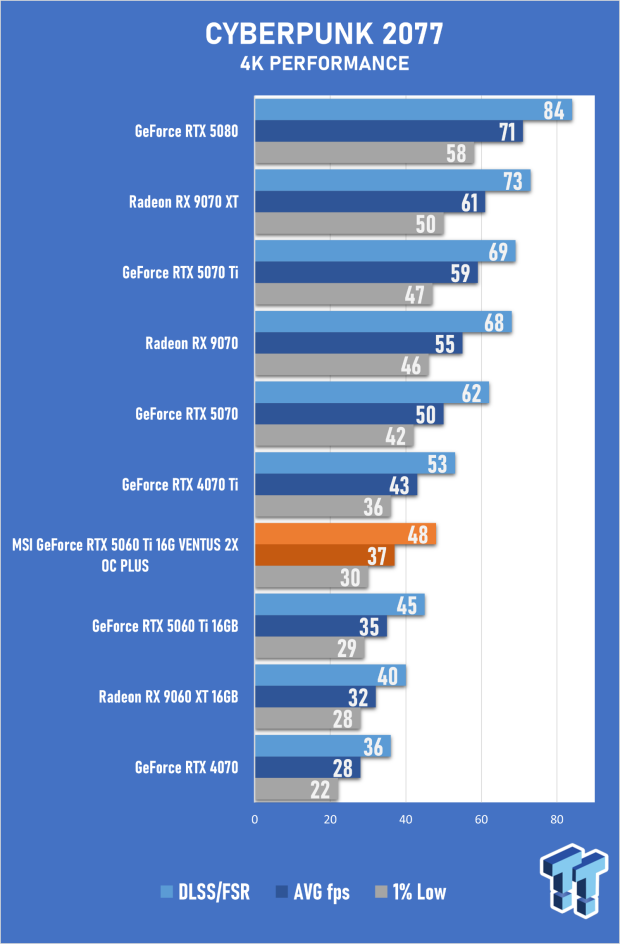

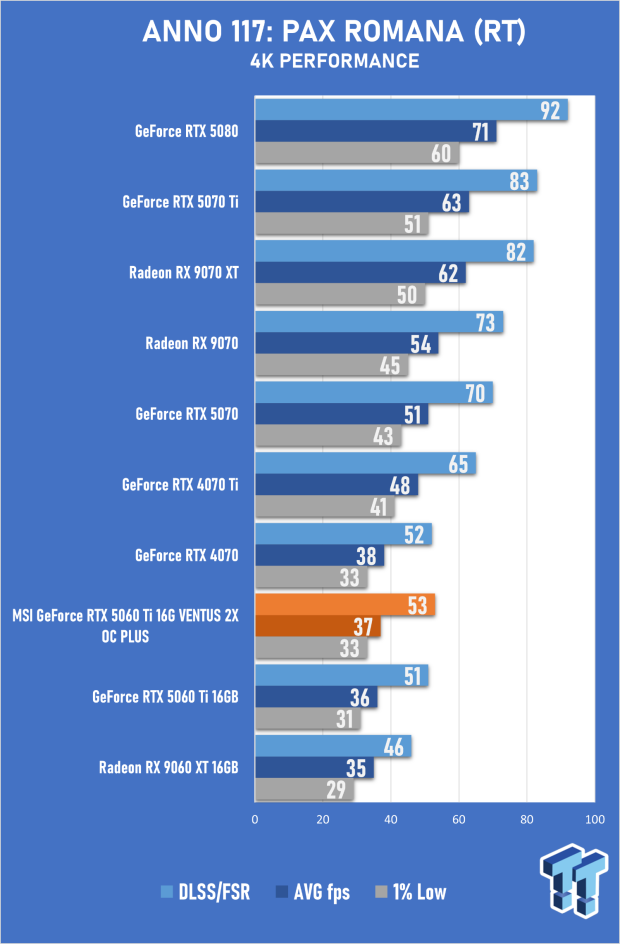

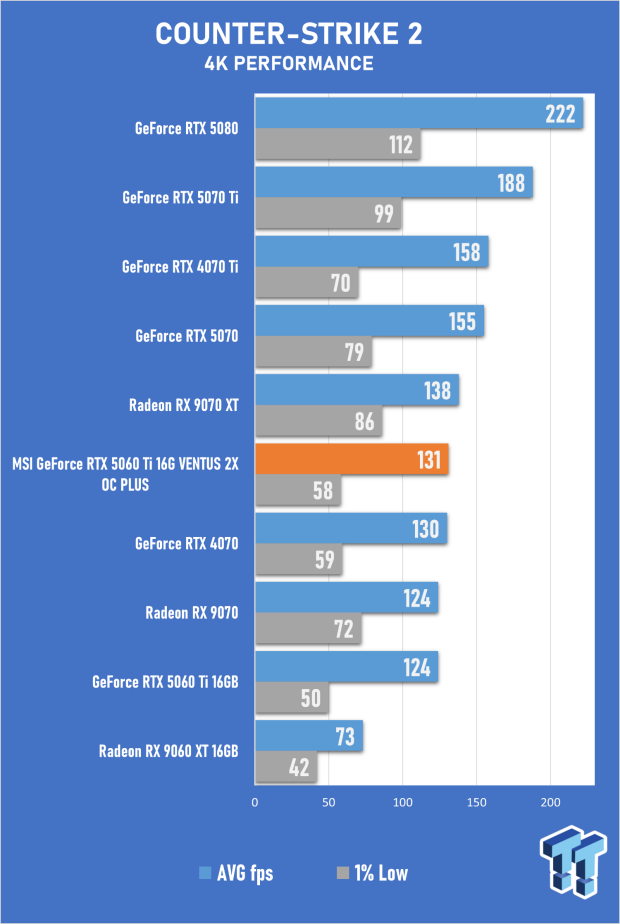

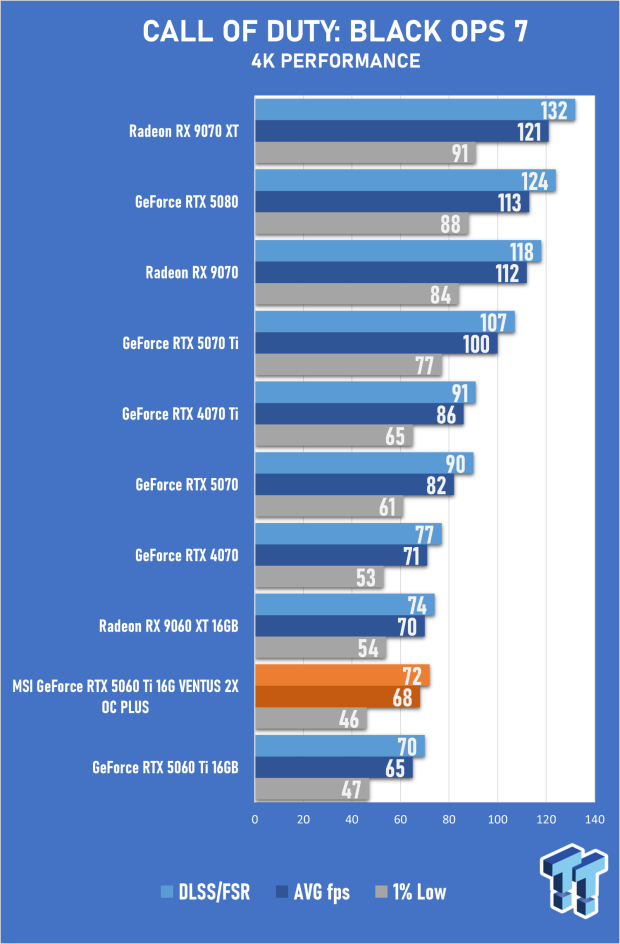

Benchmarks - 4K Gaming

DLSS 4, Frame Generation, and Multi Frame Generation

DLSS 4 and Multi Frame Generation are impressive technologies, thanks mainly to improvements in performance and latency on the Multi Frame Generation side, as well as the new 'Transformer' model for Super Resolution and Ray Reconstruction. We used the DLSS 'Quality' mode preset for these benchmarks, which delivers better-than-native image quality when compared to traditional AA methods like TAA.

58

When you move toward the most mainstream GPU class, it's worth reiterating that Frame Generation and Multi Frame Generation aren't technologies that improve or fix poor performance. For example, you shouldn't enable them when a game is running at 20 or even 30 FPS, as the latency or responsiveness, and input frame data will lead to a very strange and wonky experience. However, with a baseline of 50+ FPS, Frame Generation and Multi Frame Generation are great technologies for improving motion clarity and smoothness to take advantage of high refresh-rate displays.

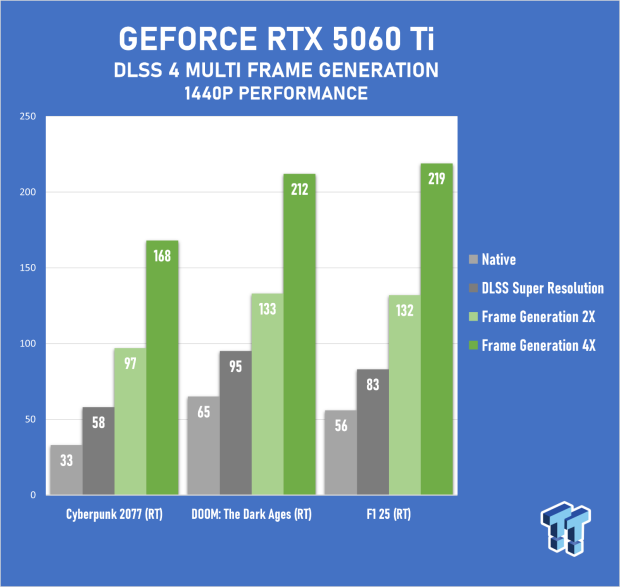

Looking at DLSS 4 Multi Frame Generation performance at 1440p on the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS across three demanding titles with ray tracing enabled, we can see it unlocks a new level of smoothness, with 200+ FPS possible. And with DLSS 4.5's new Dynamic Frame Generation, you can set a frame-rate target of 120, 144, or the maximum refresh-rate of your display to get the most out of the technology.

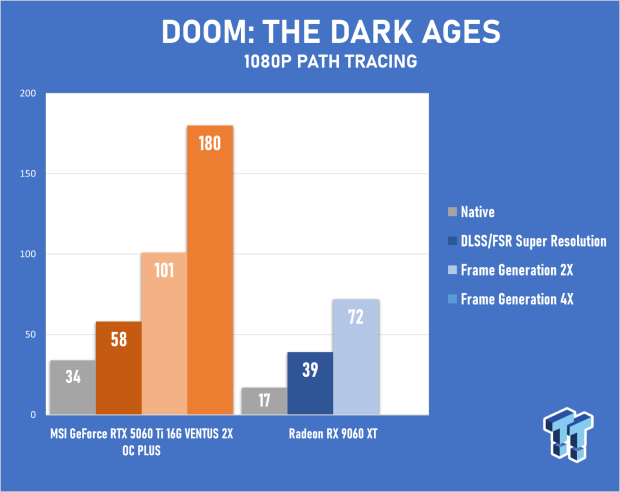

Path Tracing Performance

Path Tracing, or Full Ray Tracing, arrived with the GeForce RTX 40 Series and DLSS 3 and is leveling up with the GeForce RTX 50 Series and DLSS 4. It's only possible thanks to AI technologies like DLSS Super Resolution, Ray Reconstruction, and RTX Neural Shader technology like RTX Mega Geometry. It's designed specifically for these technologies, and we're only including native or rasterized performance to highlight just how intensive it is on a more affordable GPU like the GeForce RTX 5060 Ti. In fact, aside from the massive performance boost, these games also look notably worse without DLSS 4.

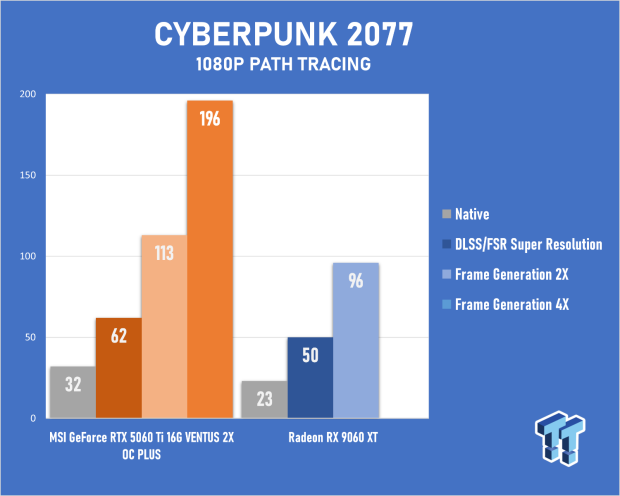

Path Tracing is becoming increasingly more common in major releases; it's still the sort of technology that is at home on more mid-range and enthusiast-class GeForce RTX 50 Series cards. That said, the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is what you'd consider an entry-level Path Tracing GPU, delivering impressive results at 1080p thanks to DLSS 4. Path Tracing is only meant to be played with these technologies, so the "entry-level" nature of the GeForce RTX 5060 Ti 16GB GPU refers to the resolution. Here, 100+ FPS performance with responsive controls is what you can expect to find, and in titles like Cyberpunk 2077 or the newly released Resident Evil Requiem, the result is next-level immersion thanks to the stunning, cinematic visuals.

Temperature and Power Efficiency

58

When it comes to performance, the GeForce RTX 5060 Ti 16GB is easily the most power-efficient card in the GeForce RTX 50 Series lineup, with MSI's overclocked model drawing around 152W on average when gaming at 1440p. This is an impressive result and reaffirms that the compact design is perfect for small Mini ITX-like builds. Plus, the cooling here is up to the task: in a closed-case environment, the GPU temperature mostly stayed in the low 60s, peaking at 64 degrees Celsius during a stress test.

Final Thoughts

In a perfect world, or a better version of the current reality, where there isn't a memory crisis and GPU availability is plentiful, and prices are at or close to launch-day MSRP levels. We wouldn't think twice about picking up an MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS for 1440p gaming in 2026. However, the current situation is not that, and, given the current GPU market, the GeForce RTX 5060 Ti 16GB is now selling at a price that makes more sense for a GeForce RTX 5070. However, it's all relative. With the price of all GPUs rising, especially models with 16GB of VRAM, the value proposition hasn't really changed for those looking for a 1440p gaming GPU. And it's when you factor in the RTX 5060 Ti's efficiency and performance with DLSS 4 and the new DLSS 4.5 that makes it an impressive performer.

58

DLSS 4 is currently available in hundreds of games, with most, if not all, major PC game releases supporting the technology. Using the Quality or Balanced preset at 1440p and the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS delivers the sort of performance you'd expect to find on a higher-tier GPU like the RTX 5070 Ti. Of course, DLSS is there and ready to enable on all GeForce RTX cards. Still, when you get into the more affordable realm of the RTX 5060 Series, the benefits can feel more impactful, with tech like the new DLSS Dynamic Frame Generation adding another layer to the story. And when it comes to GeForce RTX 5060 Ti models, it's always great to see compact, lightweight cards like this, as they can be installed in a PC smaller than a console.
